Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471). Cast iron threaded fittings are available in both black and galvanized.

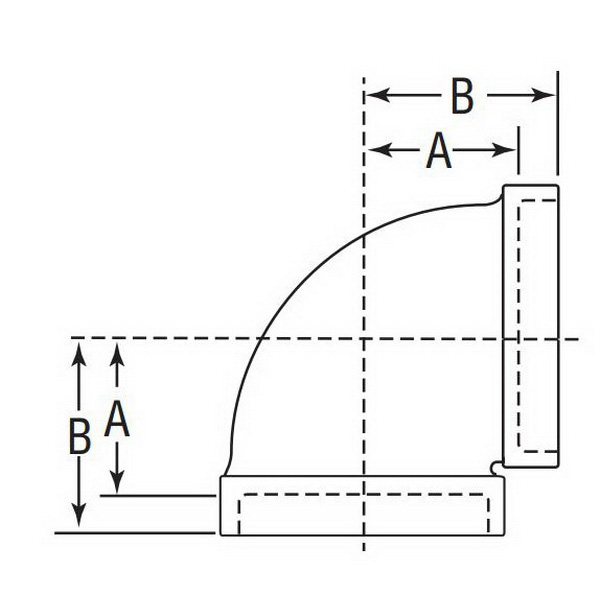

Anvil® Straight Pipe Elbow, Series: FIG 351, 90 deg Elbow Fitting/Connector, 3/4 in Nominal, Thread End Style, SCH 40/STD Schedule, 125 lb Pressure Class, 175 psi Pressure, Cast Method of Manufacture, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic/Import: Domestic
Domestic/Import
Domestic
End Style
Thread
Finish
Black Oxide
Fitting/Connector Type
90 deg Elbow
Material
Cast Iron
Method of Manufacture
Cast
Nominal Size
3/4 in
Pressure Class
125 lb
Pressure Rating
175 psi
Schedule Rating
SCH 40/STD
Series
FIG 351
Temperature Rating
-20 to 150 deg F
- Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
