All standard or class 125 cast iron flanged fittings are manufactured to ASME specifications and are marked 125 for pipe sizes 12 NPS (300 DN) and smaller; and have plain faces. Unless otherwise specified, cast iron flanged fittings are drilled and faced in accordance with ASME B 16.1. Cast iron flanged fittings are available in both black painted and galvanized.

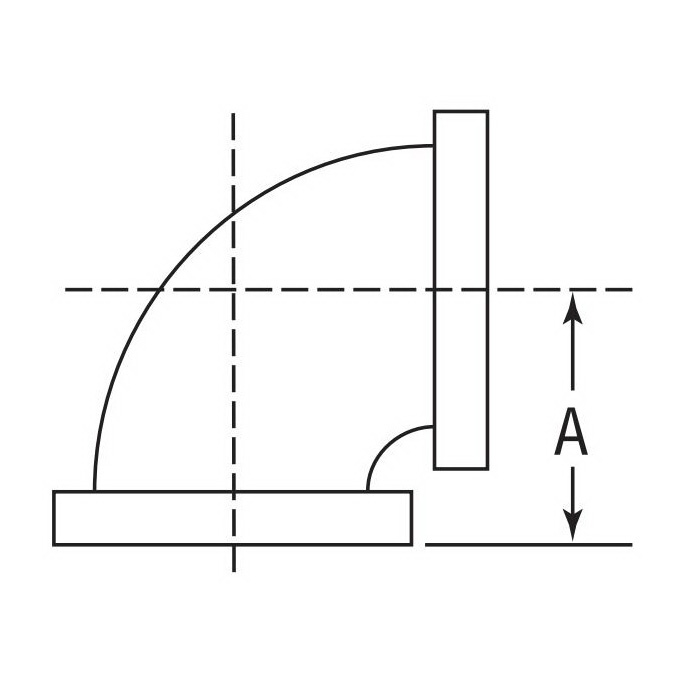

Anvil® Pipe Elbow, Straight, Series: FIG 801, 1-1/2 in Nominal, Flanged, 90 deg, 9/16 in Thickness, SCH 40/STD, 125 lb, -20 to 450 deg F, Cast Iron, Black Oxide, Black, 5 in Dia Flange, Import
Angle
90 deg
Color
Black
Dimensions
5 in Dia Flange
Domestic/Import
Import
End Style
Flanged
Finish
Black Oxide
Material
Cast Iron
Nominal Size
1-1/2 in
Pressure Rating
125 lb
Schedule Rating
SCH 40/STD
Series
FIG 801
Temperature Rating
-20 to 450 deg F
Thickness
9/16 in
Type
Straight
- Designed for easy compact bolting, flanged fittings use a gasket to seal with flanged pipe fittings, flanges, valves, pumps and other equipment.
