All standard or class 125 cast iron flanged fittings are manufactured to ASME specifications and are marked 125 for pipe sizes 12 NPS (300 DN) and smaller; and have plain faces. Unless otherwise specified, cast iron flanged fittings are drilled and faced in accordance with ASME B 16.1. Cast iron flanged fittings are available in both black painted and galvanized.

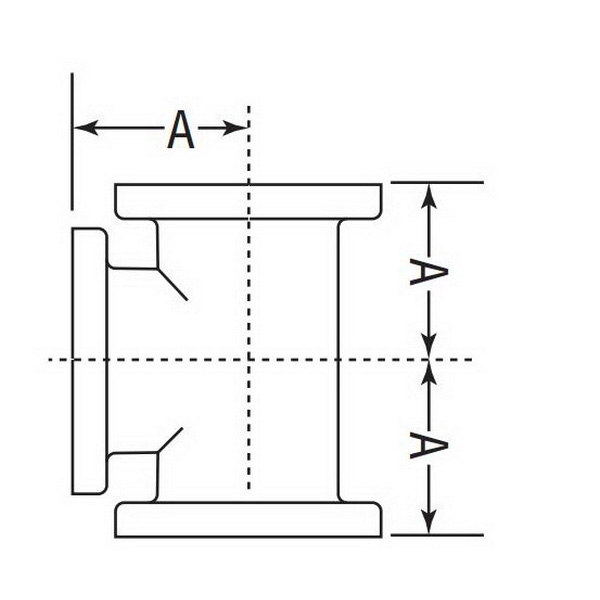

Anvil® Pipe Tee, Straight, Series: FIG 811, 3 in Nominal, Flanged End Style, 3/4 in Thickness, SCH 40/STD Schedule, 125 lb Pressure, -20 to 450 deg F, Cast Iron, Black, 7-1/2 in Dia Flange Dimensions, Domestic
Color
Black
Dimensions
7-1/2 in Dia Flange
Domestic/Import
Domestic
End Style
Flanged
Material
Cast Iron
Nominal Size
3 in
Pressure Rating
125 lb
Schedule Rating
SCH 40/STD
Series
FIG 811
Temperature Rating
-20 to 450 deg F
Thickness
3/4 in
Type
Straight
- Designed for easy compact bolting, flanged fittings use a gasket to seal with flanged pipe fittings, flanges, valves, pumps and other equipment.
