All standard or class 125 cast iron flanged fittings are manufactured to ASME specifications and are marked 125 for pipe sizes 12 NPS (300 DN) and smaller; and have plain faces. Unless otherwise specified, cast iron flanged fittings are drilled and faced in accordance with ASME B 16.1. Cast iron flanged fittings are available in both black painted and galvanized.

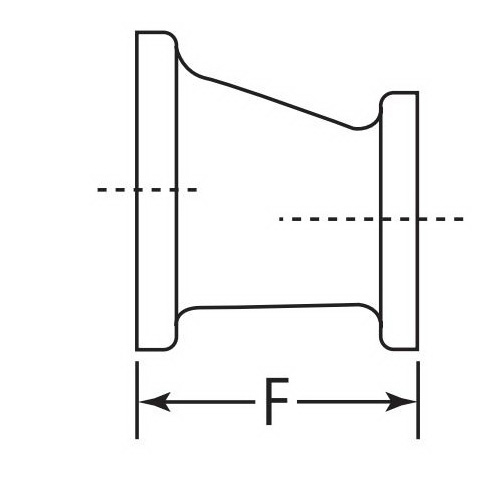

Anvil® Pipe Reducer, Eccentric, Series: FIG 826, 3 x 2-1/2 in Nominal, Flange, 6 in Length, SCH 40/STD, 125 lb, -20 to 450 deg F, Cast Iron, Black Oxide, Import
Domestic/Import
Import
End Style
Flange
Finish
Black Oxide
Length
6 in
Material
Cast Iron
Nominal Size
3 x 2-1/2 in
Pressure Rating
125 lb
Schedule Rating
SCH 40/STD
Series
FIG 826
Temperature Rating
-20 to 450 deg F
Type
Eccentric
- Designed for easy compact bolting, flanged fittings use a gasket to seal with flanged pipe fittings, flanges, valves, pumps and other equipment.
