Class 125 (standard) iron flanges are manufactured to American National Standard ASME B16.1 except as noted. Class 125 iron flanges are available in both black painted and galvanized.

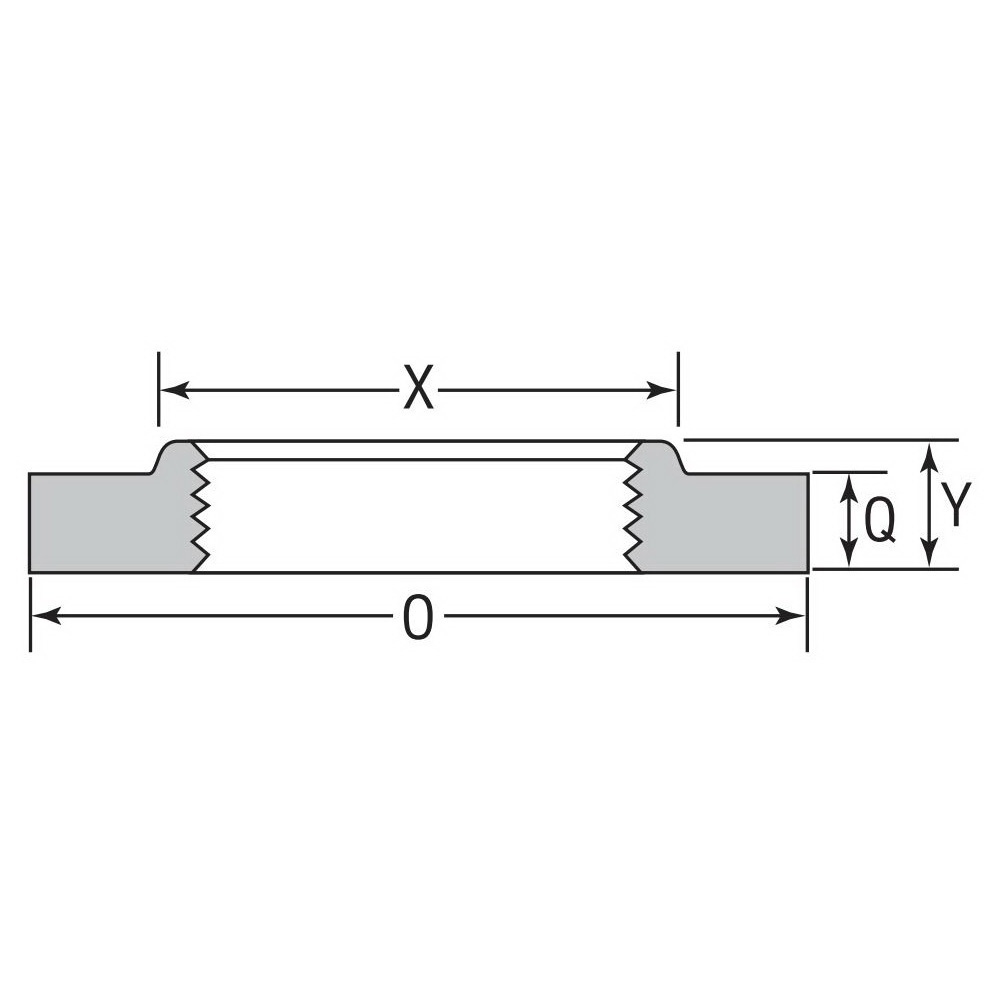

Anvil® Companion Flange, Series: FIG 1011, 2-1/2 in Nominal, 1-11/16 in Thickness, Thread Connection, 7 in OD, 200 psi Pressure, 125 lb Pressure Class, -20 to 450 deg F, 3-9/16 in Diameter Hub, 1-1/8 in Length Through Hub, Cast Iron, Galvanized, Domestic/Import: Domestic
Connection Type
Thread
Domestic/Import
Domestic
Finish
Galvanized
Hub Diameter
3-9/16 in
Length Through Hub
1-1/8 in
Material
Cast Iron
Nominal Size
2-1/2 in
Outside Diameter
7 in
Pressure Class
125 lb
Pressure Rating
200 psi
Series
FIG 1011
Temperature Rating
-20 to 450 deg F
Thickness
1-11/16 in
- Threaded companion flanges offer an economical way to convert the plain end of a pipe to a flanged connection
