Anvil® C-Clamp, Universal Wide Throat, Series: FIG 93, 3/8 in Rod, 1-1/4 in Flange Thickness, 950 lb Top/760 lb Bottom, 125 in-lb Torque, Ductile Iron, Plain, 450 deg F
Finish
Plain
Flange Thickness
1-1/4 in
Load Capacity
950 lb Top/760 lb Bottom
Material
Ductile Iron
Rod Size
3/8 in
Series
FIG 93
Specifications
125 in-lb Torque
Temperature Rating
450 deg F
Type
Universal Wide Throat

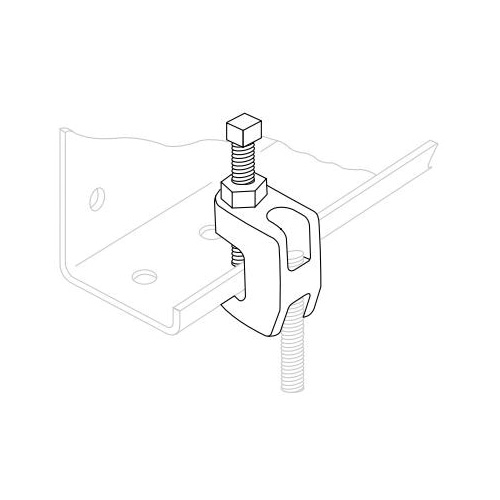

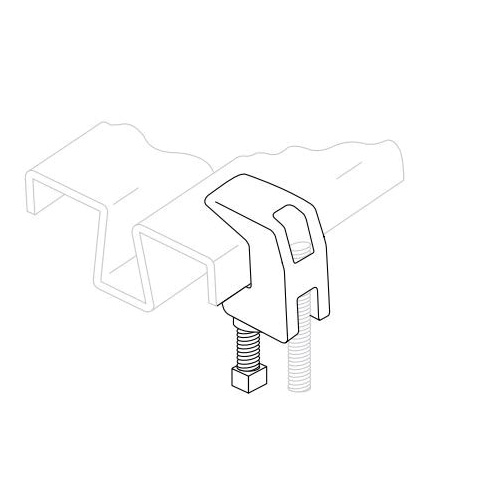

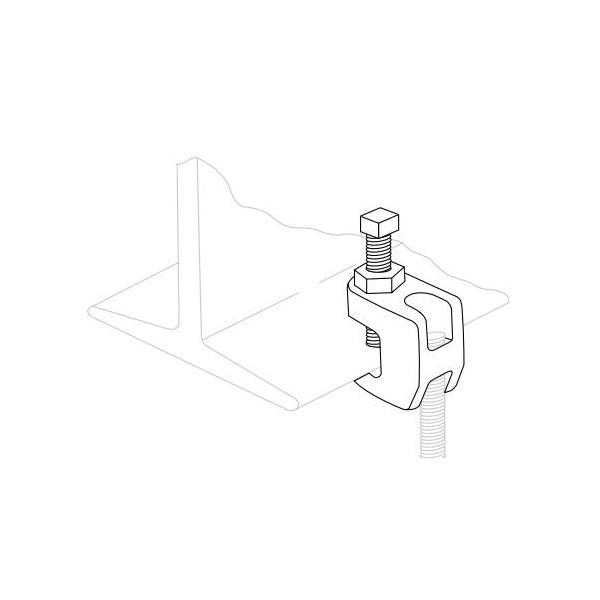

- They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions.
- Attached to horizontal flanges of structural members in either the top beam or bottom beam positions
- Secured in place by a cup-pointed set screw tightened against the flange
- A jam nut is provided for tightening the set screw against the body casting
- Thru tapping of the body casting permits extended adjustment of the threaded rod
- Wider throat for attaching to flange with up to 1-1/4 in THK
- Recommended for use under roof installations with bar joist type constructions, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 1-1/2 in
- Hardened steel cup point set screw and locknut
