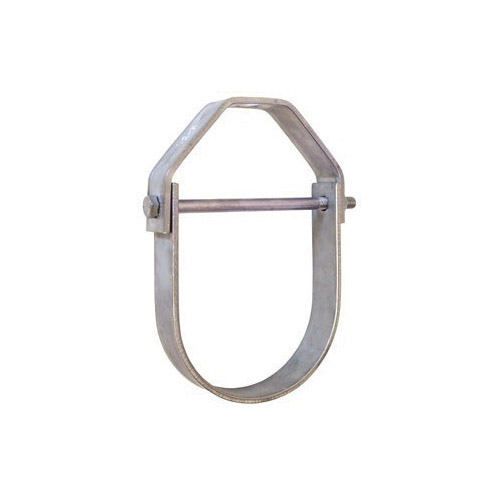

Anvil® Clevis Hanger, Adjustable, Series: FIG 260SS, 2 in Pipe, 3/8 in Rod, 730 lb, 10 ft Span, 304 Stainless Steel
Load Capacity
730 lb
Material
304 Stainless Steel
Pipe Size
2 in
Rod Size
3/8 in
Series
FIG 260SS
Span
10 ft
Type
Adjustable
- Hanger load nut above clevis must be tightened securely to assure proper hanger performance
- Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
- Tighten upper nut after adjustment
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
- Thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
- Span represents the maximum span for water filled pipe
