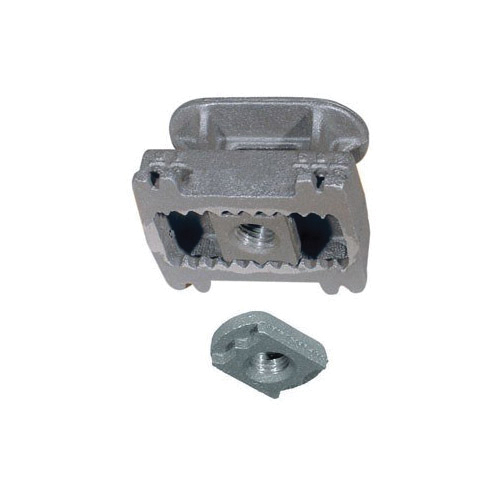

Anvil® Concrete Insert Nut Only, Series: FIG 282, 3/4 in Rod Dia, 1140 lb, Malleable Iron, Zinc Plated, 3-3/8 in L x 3-1/4 in W x 2-3/16 in H, Domestic
Dimensions
3-3/8 in L x 3-1/4 in W x 2-3/16 in H
Domestic/Import
Domestic
Finish
Zinc Plated
Load Capacity
1140 lb
Material
Malleable Iron
Rod Diameter
3/4 in
Series
FIG 282
- Opening in top of insert provides for use of reinforcing rods up to 7/8" diameter.
- Cast body prevents concrete seepage
- Opening in top of insert provides for use of reinforcing rods up to 7/8 in Dia
- Sides of insert are recessed for reinforcing rods up to 1 in Dia
- Low height, broad flat bottom and widely separated nail slots minimize displacement during construction
- The nut held in place by V-type teeth on both insert and nut can be raised and moved from side to side providing for lateral adjustment
- Rod is locked in place by screwing it firmly against the top of the recess
- One body size
