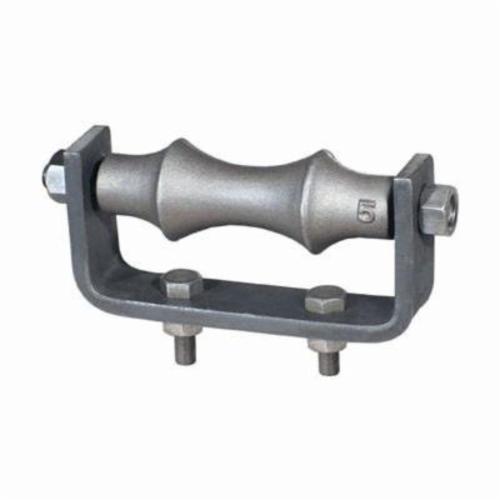

Anvil® Roller Chair, Series: FIG 175, 10 in Pipe, 1730 lb, Cast Iron, Black Oxide, 14-3/8 in W, 400 deg F, Import
Dimensions
14-3/8 in W
Domestic/Import
Import
Finish
Black Oxide
Load Capacity
1730 lb
Material
Cast Iron
Pipe Size
10 in
Series
FIG 175
Temperature Rating
400 deg F
- Non conductive pipe rollers - prevent the passing of current from pipeline to structure.
- For support of pipe where longitudinal movement due to expansion and contraction may occur but where no vertical adjustment is required
- Non conductive pipe rollers - prevent the passing of current from pipeline to structure
- Corrosion resistant - for protection against severe weather conditions, moderate corrosive conditions such as marine atmospheres and weather resistant to ultra-violet radiation
- Low coefficient of friction between pipe and resilient coated pipe roller
- 2 through 30 in pipe size
- Installation: two bolts and nuts provide anchorage to floor or top of steel beam or bracket or chair may be welded to supporting steel
- Cast iron roll, steel chair, roll rod, bolts and hex nuts
