High volume air relief valves designed for low pressure air and gas service. Rugged bronze construction features elastomer soft seating and TFE coated discs for dependable operation.
Apollo™, 1450510, Relief Valve, Low Pressure, Series: 14-500, 2 in Nominal, MNPT x FNPT End Style, 10 psi Pressure, 400 deg F, 829 scfm Flow Rate, Media: Air/Gas, 3-1/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, Silicone Seat O-Ring/Silicone Cap Seal O-Ring Softgoods, 6-1/2 in H Dimensions, Domestic
Actuator Type
Plain Sealed Cap
Body Material
Bronze

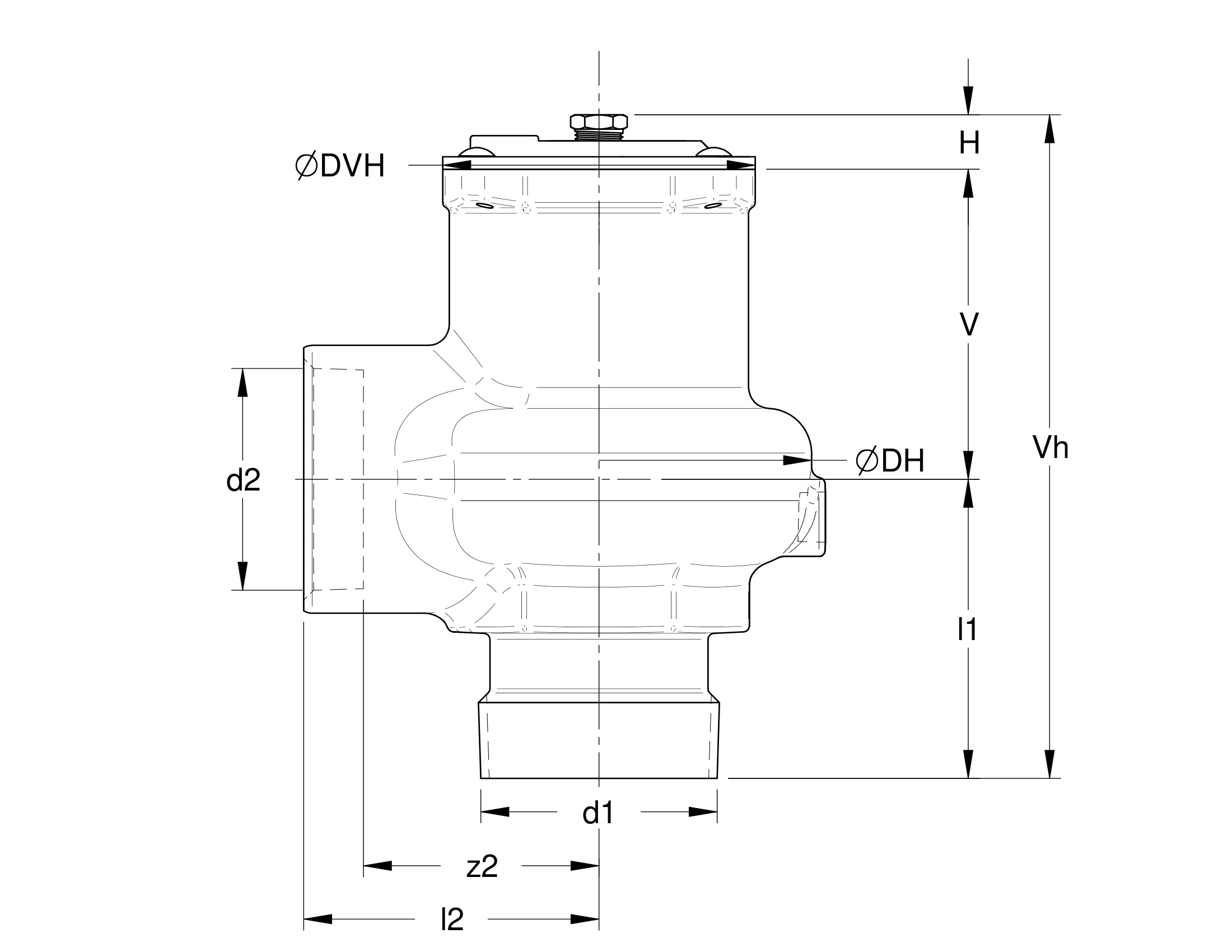

Dimensions
6-1/2 in H
Domestic/Import
Domestic
End Style
MNPT x FNPT
Flow Rate
829 scfm
Inlet to Outlet Length
3-1/8 in
Media
Air/Gas
Nominal Size
2 in
Pressure Rating
10 psi
Series
14-500
Softgoods Material
Silicone Seat O-Ring/Silicone Cap Seal O-Ring
Temperature Rating
400 deg F
Trim Material
Brass
Type
Low Pressure
- Vibration resistant soft seat is standard
- Stainless steel spring
- One piece unified bronze body design
- High flow top-guided design
- Set pressures 4 to 22 psig at 400 deg F max
