The Apollo™ 32-100 Series is an economy NPT threaded Regular Port Bronze Ball Valve featuring a proven ASTM grade cast bronze body for durability and superior corrosion resistance.

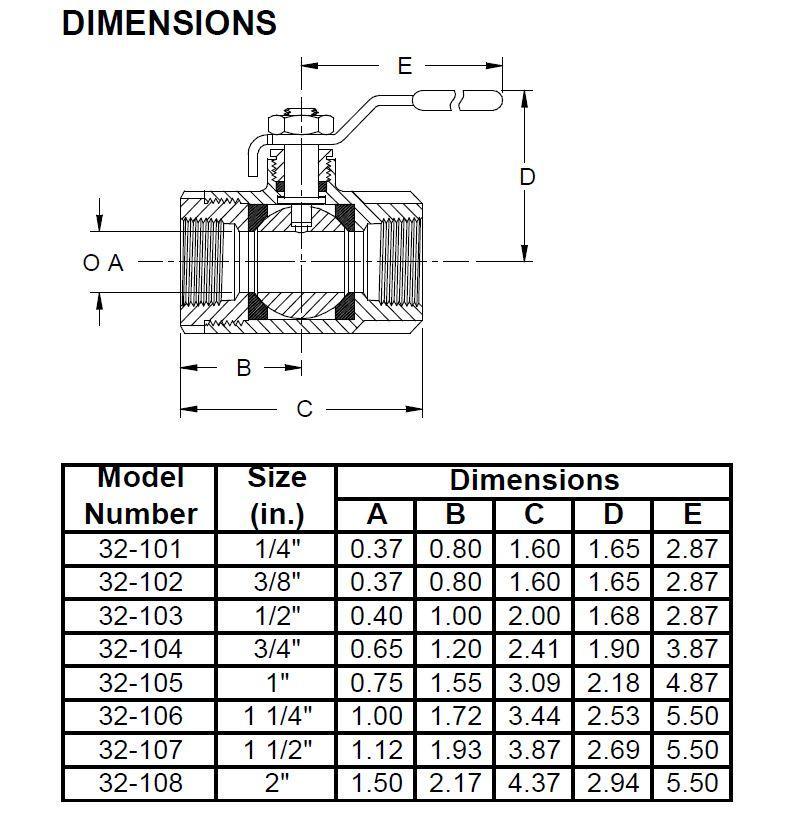

Apollo™, 3210601, Ball Valve, 2-Piece, Series: 32-100, 1-1/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 400 deg F, Standard Port, Lever Operated Actuator, 3.44 in Inlet to Outlet Length, 2.53 in Top to Inlet Center, Bronze Body, Brass Stem/PTFE Seat Trim, RPTFE Softgoods
Actuator Type
Lever Operated
Ball Material
Chrome Plated Brass
Body Material
Bronze
Domestic/Import
Domestic
End Style
FNPT
Inlet to Outlet Length
3.44 in
Nominal Size
1-1/4 in
Port Type
Standard
Pressure Rating
400 psi CWP
Series
32-100
Softgoods Material
RPTFE
Temperature Rating
400 deg F
Top to Inlet Center
2.53 in
Trim Material
Brass Stem/PTFE Seat
Type
2-Piece
- Blow-out proof stem design
- 100% factory tested
- Zinc plated with vinyl steel lever and grip
- Zinc plated steel lever nut
- ASTM B584-C84400 bronze body
- Vacuum service to 29 in Hg
- Zinc plated steel lever screw
- 125 psi working steam pressure
