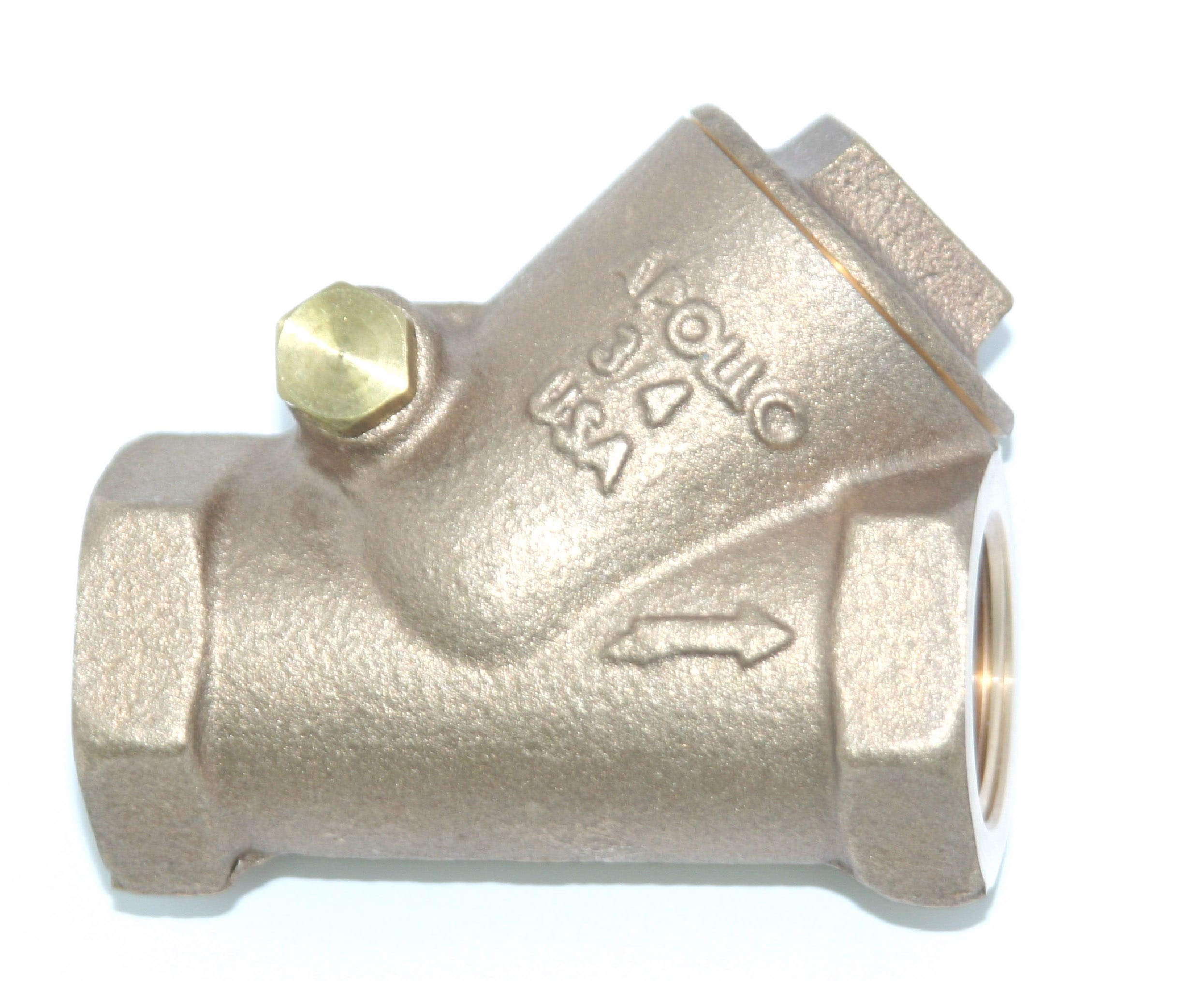

The Apollo™ Model 163T (61Y Series) Swing Check provides a cost effective Made in the USA alternative to globally sourced check valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ Swing Check can be installed in either horizontal or vertical line with upward flow.
Apollo™, 61Y205T1, Swing Check Valve, Y-Pattern, Series: 163T, 1 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, No Low Lead Compliance, 28.6 gpm Flow Rate, Media: Steam, 3.57 in Inlet to Outlet Length, Bronze Body, PTFE Trim, 2.26 in H Dimensions, Domestic
Body Material
Bronze
Dimensions
2.26 in H
Domestic/Import
Domestic
End Style
NPT
Flow Rate
28.6 gpm
Inlet to Outlet Length
3.57 in
Low Lead Compliance
No
Media
Steam
Nominal Size
1 in
Pressure Class
125 lb
Pressure Rating
200 psi CWP
Series
163T
Temperature Rating
-20 to 406 deg F
Trim Material
PTFE
Type
Y-Pattern
- Renewable PTFE seat disc
- Dezincification resistant
- 100% Factory tested per MSS
- 100% cast, machined and assembled in the US
