The Apollo™ 77C Contractor Series ball valve features a dezincification resistant bronze body, premium multi-fill MPTFE seats and stem packing, and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants utilizing proven ASTM materials.
Apollo™, 77C10894A, Ball Valve, 2-Piece, Series: 77C-A, 2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, Lever Operated Actuator, 4.85 in Inlet to Outlet Length, 3.68 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods
Actuator Type
Lever Operated
Ball Material
Chrome Plated Brass
Body Material
Bronze
Domestic/Import
Domestic
End Style
FNPT

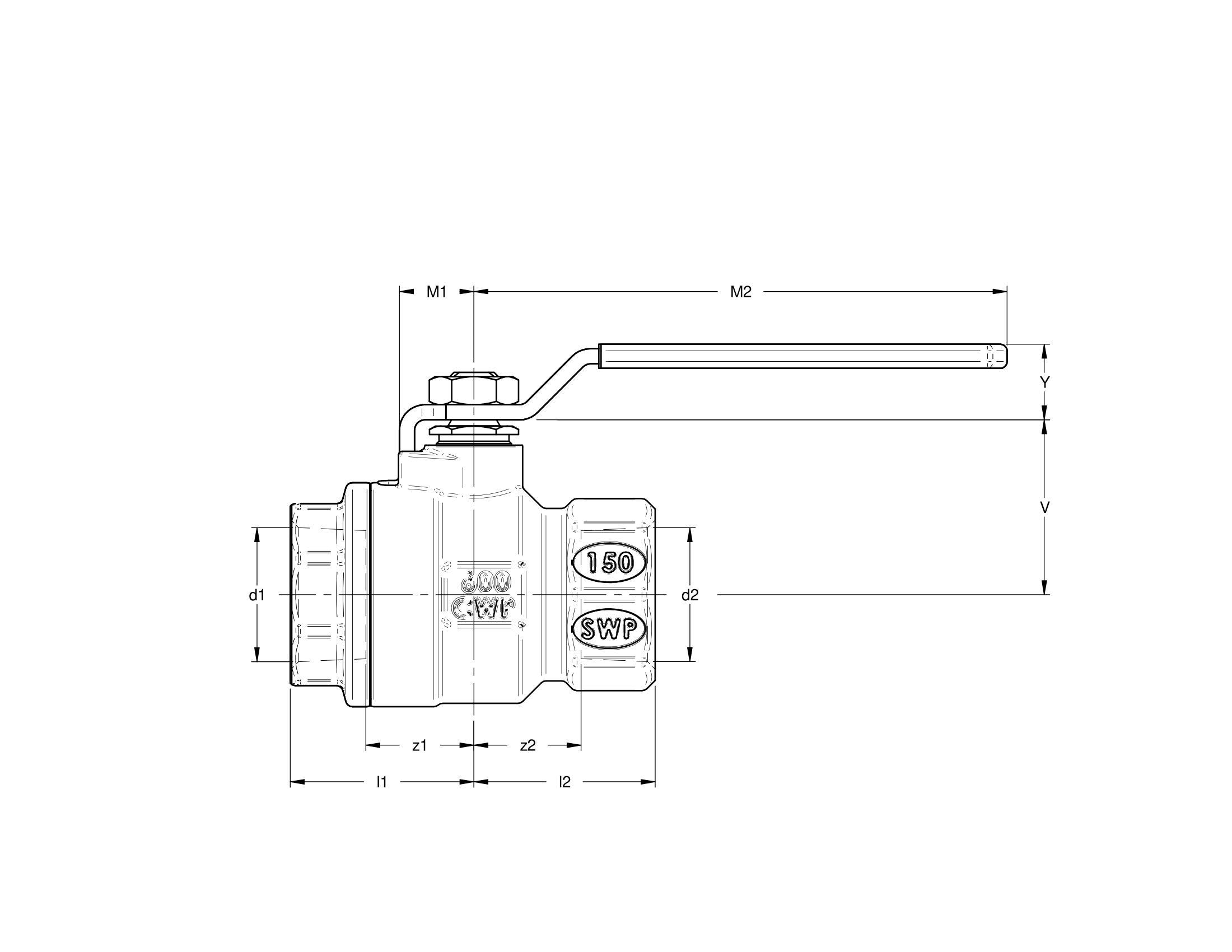

Inlet to Outlet Length
4.85 in
Media
Water
Nominal Size
2 in
Port Type
Full
Pressure Rating
600 psi CWP
Series
77C-A
Softgoods Material
RPTFE
Temperature Rating
450 deg F
Top to Inlet Center
3.68 in
Trim Material
Brass Stem/RPTFE Seat
Type
2-Piece
- Blow-out proof stem
- Adjustable stem packing
- Full port solid ball design
- 100% factory tested
- Vacuum service to 29 in Hg
- Zinc plated steel nut
- Steel, zinc plated with vinyl grip handle
- 2-1/4 in stem extension and balancing stop
- 150 psi steam working pressure
