Armstrong Fluid Technology 207908

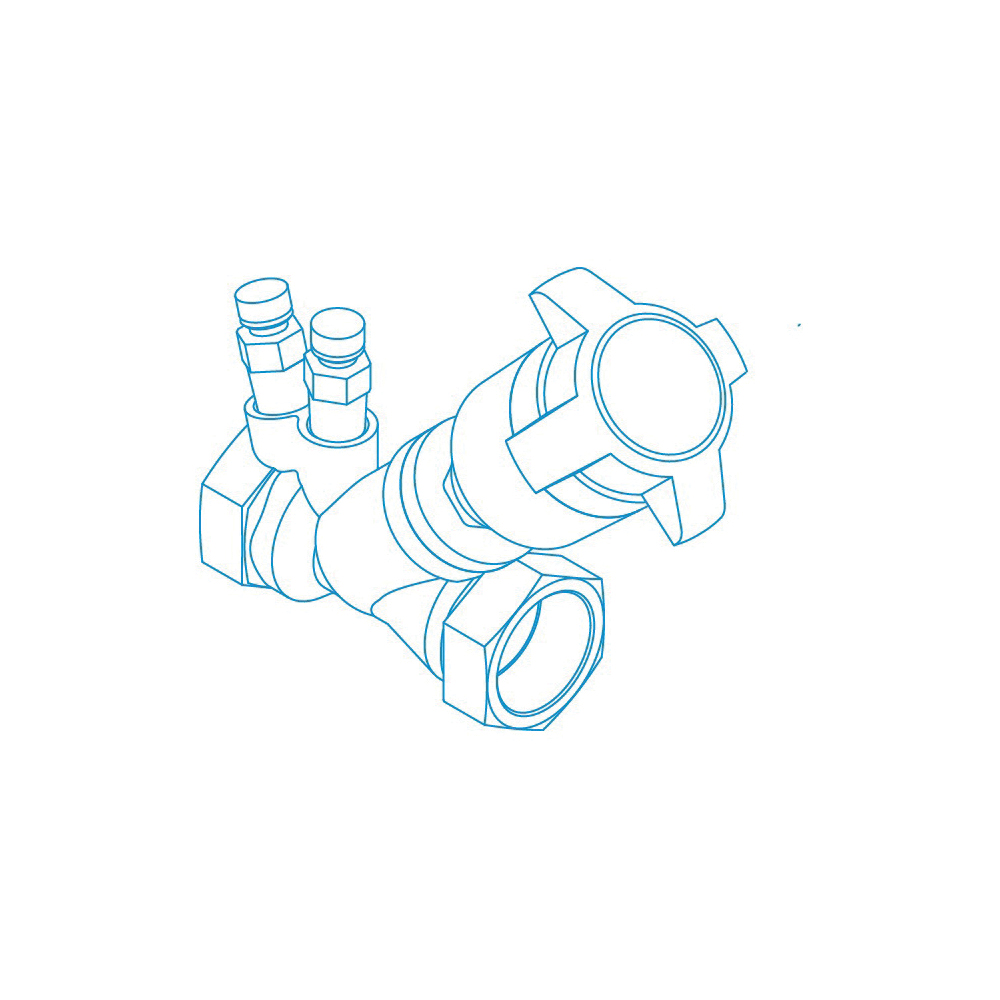

Armstrong Fluid Technology ARMflo 571110LF-350 CBV-VS Venturi Style Low Flow Circuit Balancing Valve, 1/2 in Nominal, Solder Joint End Style, 0.26 to 1.98 gpm Flow Rate, Brass Body
Manufacturer: Armstrong Fluid Technology
Brand: Armstrong Fluid Technology
Part #: 207908
MPN: 571110LF-350
CPN:
The Armstrong Circuit Balancing Valves (CBV) provide precision flow measurement, pump throttling and temperature measurement capabilities. 1/2 to 2 in models feature multi-turn adjustment for precise control, hidden memory stops to set balance point and soft seats for positive shutoff.
Armstrong Fluid Technology ARMflo Circuit Balancing Valve, Venturi Style Low Flow, Series: CBV-VS, 1/2 in Nominal, Solder Joint, 300 psi, -4 to 300 deg F, 0.26 to 1.98 gpm, Micrometer Style Handle Actuator, 3.19 in Inlet to Outlet Length, Brass Body, 4.56 in H x 2.76 in D
Actuator Type
Micrometer Style Handle
Body Material
Brass
Dimensions
4.56 in H x 2.76 in D
End Style
Solder Joint
Flow Rate
0.26 to 1.98 gpm
Inlet to Outlet Length
3.19 in
Nominal Size
1/2 in
Pressure Rating
300 psi
Series
CBV-VS
Temperature Rating
-4 to 300 deg F
Type
Venturi Style Low Flow
- High precision, fixed orifice PMD assures faster setting and superior accuracy
- Integral fixed KV primary measuring element for maximum differential pressure signal stability and optimum flow correlation accuracy
