PVC Schedule 80 Fittings are for pressure applications, and have a thicker wall than Schedule 40. PVC Schedule 80 is highly durable, with high tensile and impact strength. It has better sound deadening

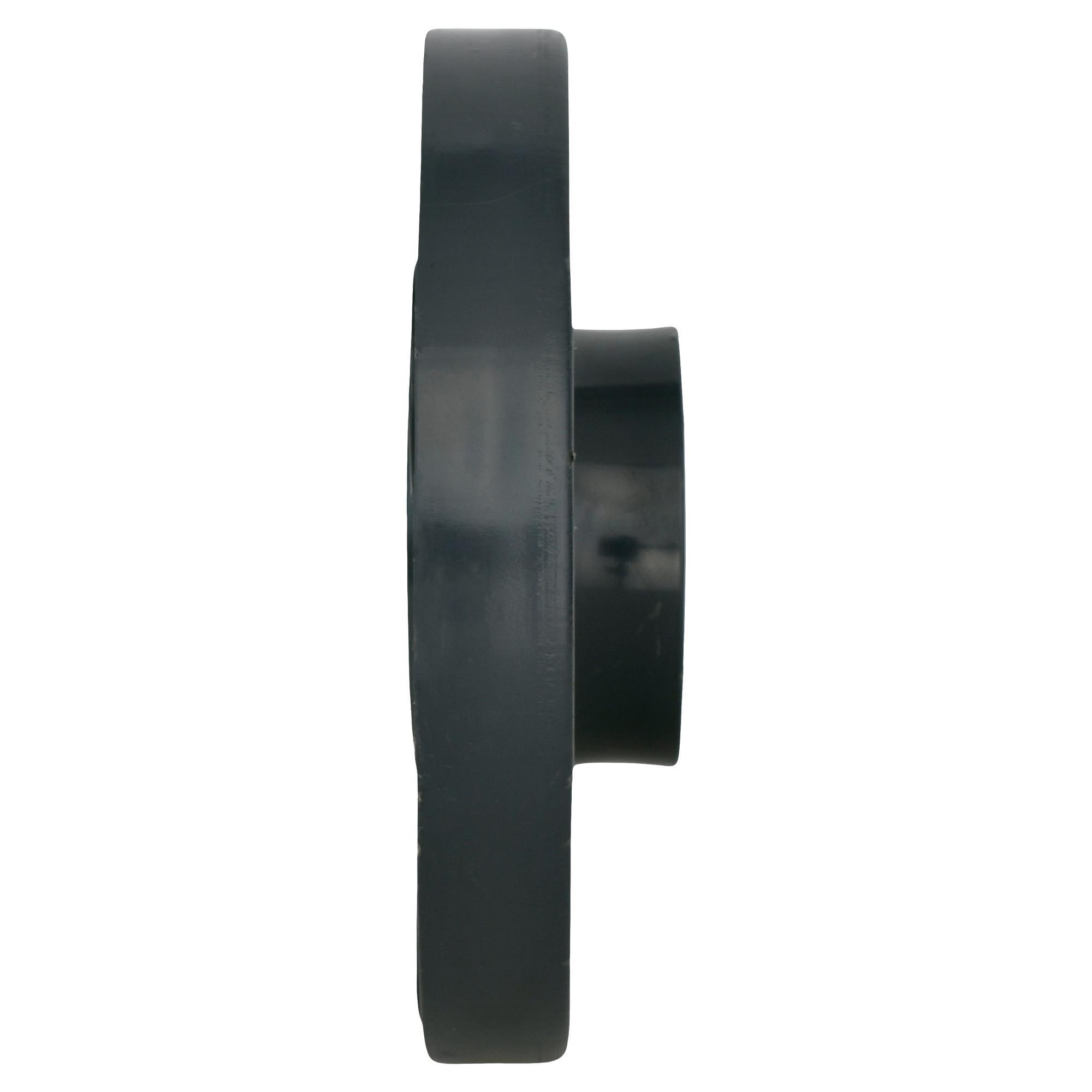

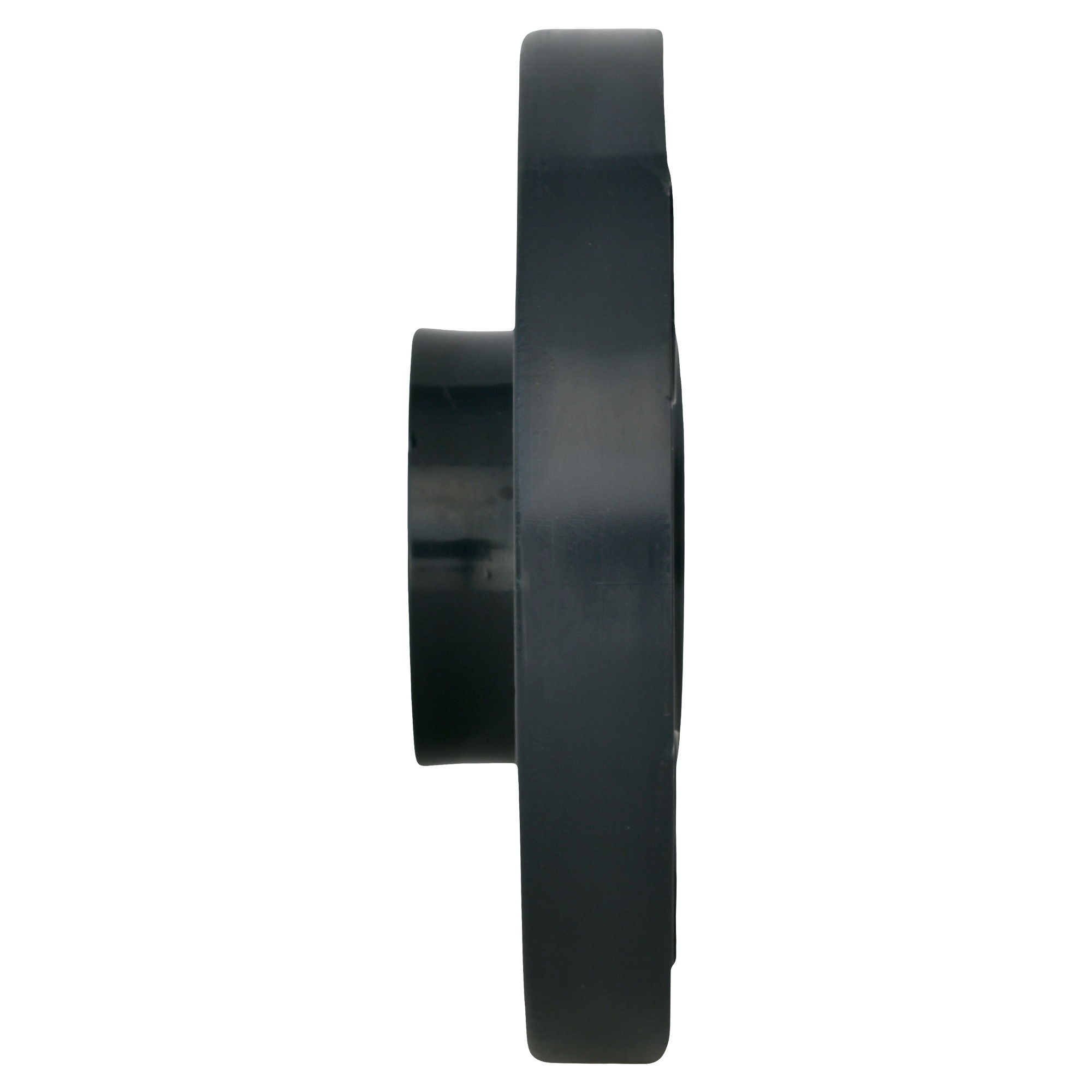

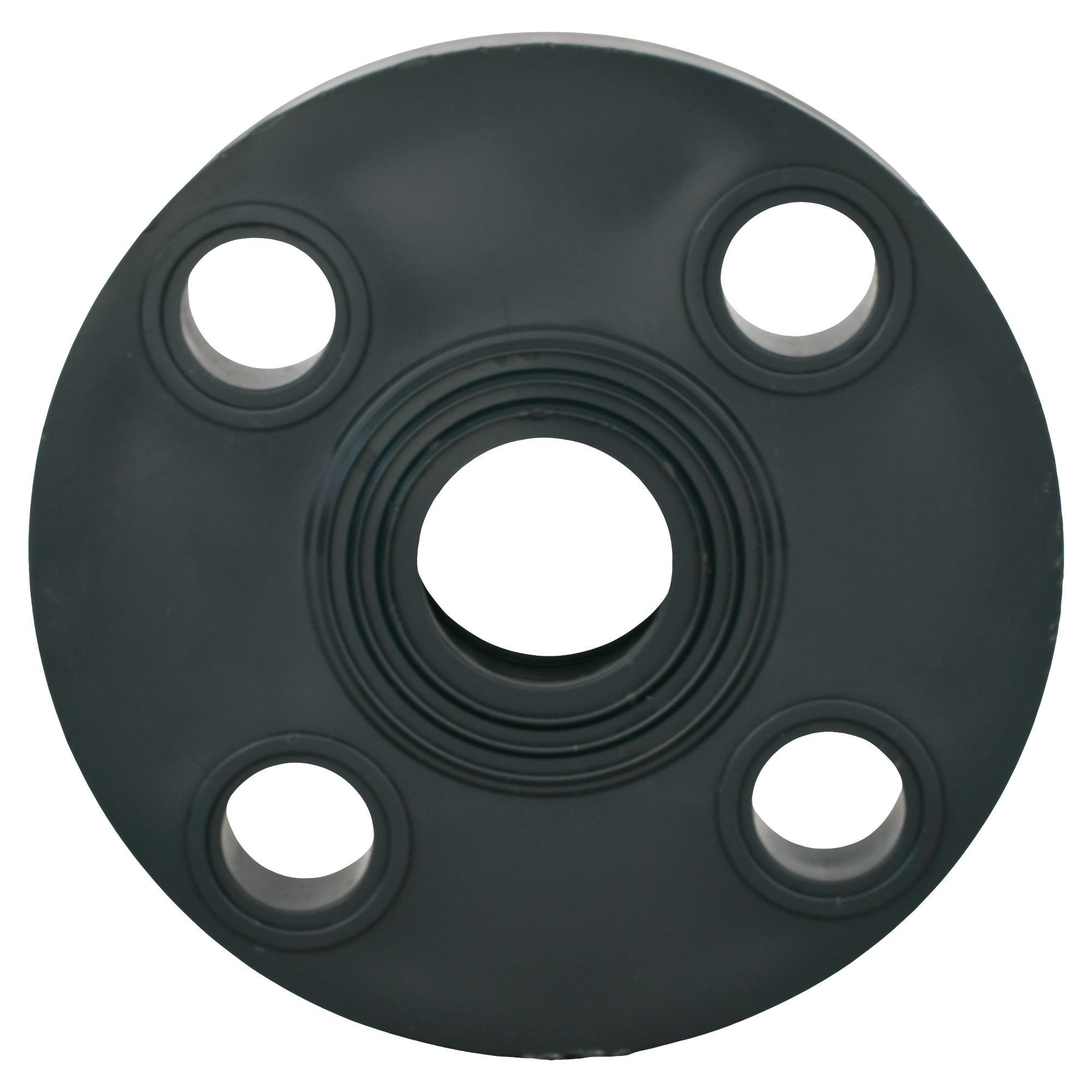

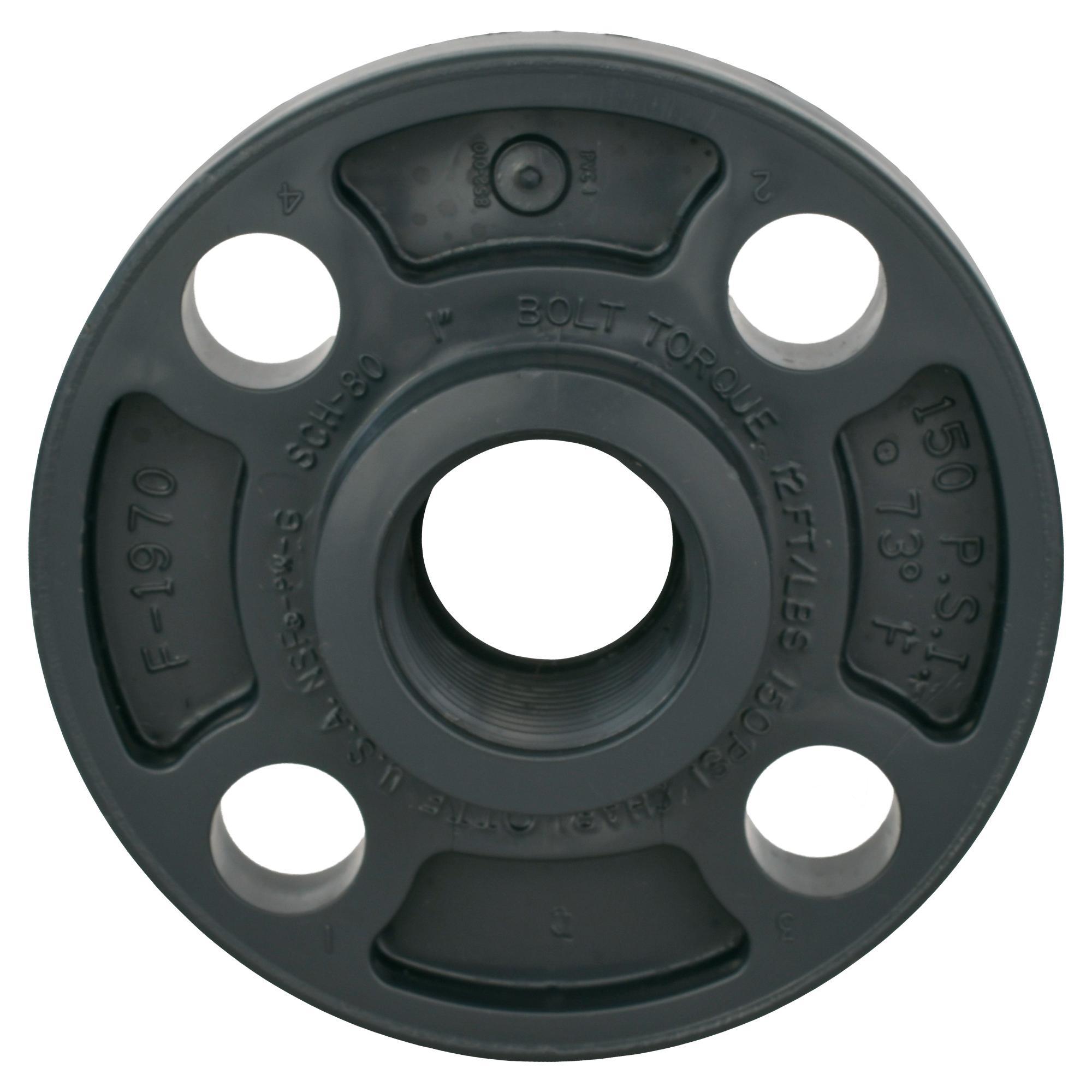

Charlotte Flange, 1-Piece, 1 in Nominal, 3-1/8 in Bolt Circle, 4 Bolt Holes, Thread, 150 psi, SCH 80/XH, 73 deg F, 1-5/16 in Length Through Hub, PVC, Dark Gray, Domestic
Bolt Circle Diameter
3-1/8 in
Color
Dark Gray
Connection Type
Thread
Domestic/Import
Domestic
Length Through Hub
1-5/16 in
Material
PVC
Nominal Size
1 in
Number of Bolt Holes
4
Pressure Rating
150 psi
Schedule Rating
SCH 80/XH
Temperature Rating
73 deg F
Type
1-Piece
- It has high impact strength and a thicker wall than Schedule 40 pipe
- It is non-toxic, lightweight and easy to install
