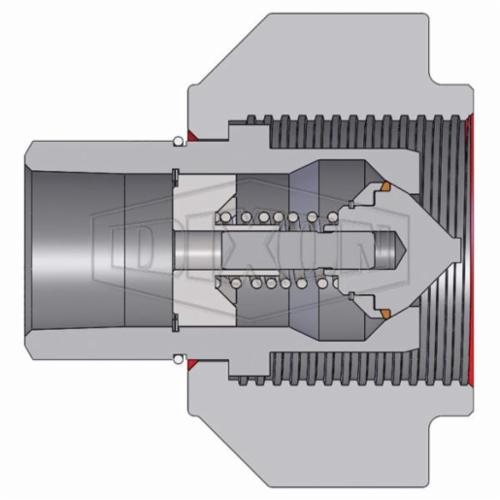

Dixon® High Pressure Coupling, Wing Style, Series: WS-BOP, 1-1/4-11-1/2 Nominal, FNPT, 4.4 in Length, 5000 psi, Steel, 4.65 in OD, Domestic
Dimensions
4.65 in OD
Domestic/Import
Domestic
End Style
FNPT
Length
4.4 in
Material
Steel
Nominal Size
1-1/4-11-1/2
Pressure Rating
5000 psi
Series
WS-BOP
Type
Wing Style
- 5000 psi Lloyd's test pressure
- Machined components are manufactured using solid steel bar stock
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant zinc nickel for superior corrosion resistance
- Red powder coated coupler wing-nut and external nipple O-ring for easy BOP service identification
- Blow-out prevention (BOP) couplings contain severe service FKM seals
- PTFE anti-extrusion ring protects main coupling O-ring from dynamic impulse pressure damage
- Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection
- 25100 psi burst pressure
- 1-1/4 in body
- Rugged high-strength steel wing-nut for threaded connect and disconnect operation
- Compatibility and interchange data: Snap-Tite 75-Series, DNP VFF-HD BOP series
- Do not use in connection with drinking water
- Wash hands after handling
