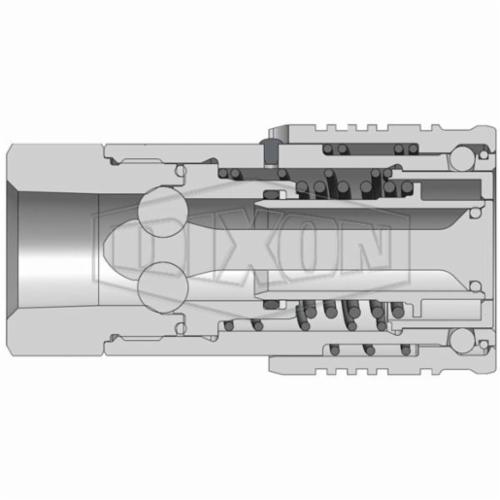

Dixon® Flush Face Coupling, Series: HT Series, 1/2-14 Nominal, FNPT, 1-3/16 in Hex, 3.02 in Length, 5000 psi, 316 Stainless Steel, 1.54 in OD
Dimensions
1.54 in OD
End Style
FNPT
Hex Size
1-3/16 in
Length
3.02 in
Material
316 Stainless Steel
Nominal Size
1/2-14
Pressure Rating
5000 psi
Series
HT Series
- Machined components are manufactured using solid bar stock
- Easily rebuildable
- Bulkhead mountable sleeve for breakaway, multi-plate or Blindmate installations
- DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
- High flow performance, compact profile
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Couplers have polyurethane valve stem O-Ring, with a temperature range of -65 to 212 deg F
