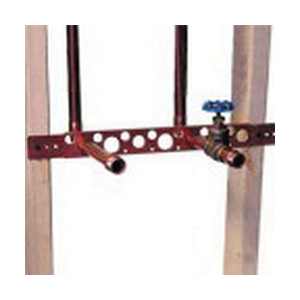

The HoldRite #102-18 and #102-26 are copper-bonded™ steel brackets with holes to support 3/4" and 1" copper tubing. Used to support stub-outs for hot water tanks, urinals and other fixtures. When soldering, heat the pipe, not the bracket.
Holdrite® Flat Bracket, 7/8 in, 1-1/8 in, 25 lb, 16 ga Thickness, Cold Rolled Steel, Copper-Bonded™, 19-1/2 in L x 1-3/4 in W, Domestic
Dimensions
19-1/2 in L x 1-3/4 in W
Domestic/Import
Domestic
Finish
Copper-Bonded™
Hole Size
7/8 in, 1-1/8 in
Load Capacity
25 lb
Material
Cold Rolled Steel
Thickness
16 ga
- Alternating 7/8 in and 1-1/8 in holes on 4 in centers
- Heavy-gauge steel bracket
- For use with pipe sizes 3/4 in, 1 in CTS
