THE HOLDRITE® 117-K Series No-Hub Restraints are designed to reinforce no-hub cast iron installations at 90 deg changes of direction in accordance with the installation instructions of U.S. cast iron soil pipe manufacturers, CISPI designation 310-11 and the 2006 CISPI installation Handbook. The 117-10K (10 in size), 117-12K (12 in size) and 117-15K (15 in size) retain the goo elbow onto the adjoining piping. When installed correctly, these restraint brackets achieve a safe thrust pressure rating equal to 50 ft head of water pressure for 10 in models and 40 ft for 12 to 15 in. Models ending in G represent galvanized. Clamps to be torqued to 60 ft/lb.

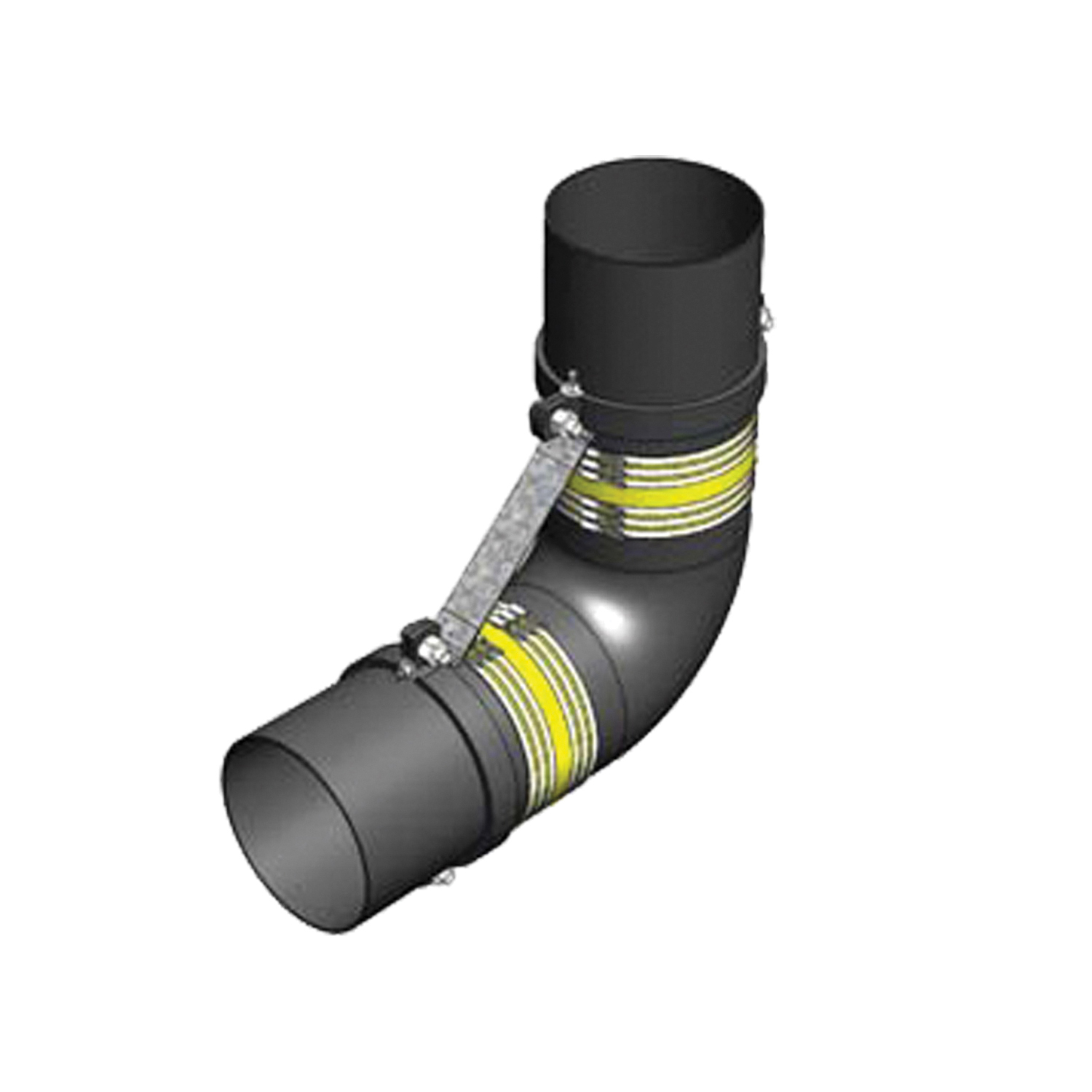

Holdrite® Short Sweep Restraint, Series: 117-12, 12 in Pipe, No-Hub Connection, Domestic/Import: Domestic
- 1/4 in, 90 deg short sweep bend restraints
- Built with stainless steel, black iron and galvanized components
- No field cutting or modifications required
- Installs in minutes
- Heavy duty black or galvanized steel pipe clamp
- Note: While these restraint kits aid in compliance with the 2006 CISPI handbook, they are not intended to suggest that no-hub pipe and fitting should be subjected to pressure in excess of the pipe manufacturers' recommendation
- Standard hardware
