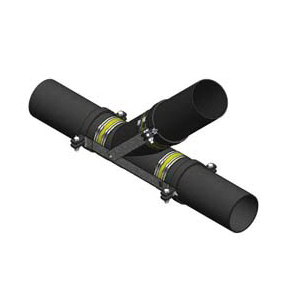

The HOLDRITE® #117-W or W-G Series NO-Hub Fitting Restraints are designed to reinforce no-hub cast iron installations at 90 deg change of direction in accordance with the installation instructions of U.S. cast iron soil pipe manufacturers, CISPI Designation 310-11 and the 2006 CISPI installation Handbook. The #117-W Series retains the Wye onto the adjoining piping. When installed correctly, these restraint brackets achieve a safe thrust pressure rating equal to 50 ft head of water pressure for 10'' models and 40' for 12''-15''. Pipe clamps must be torqued to 60 ft/lbs. Models ending in ''-G'' represent ''galvanized''.
Holdrite® No-Hub Fitting Restraint, Wye Branch, Series: 117-15, 15 in Pipe
Pipe Size
15 in
Series
117-15
Type
Wye Branch
- Ideal for restraining hubless cast iron soil pipe joints against separation during high thrust conditions
