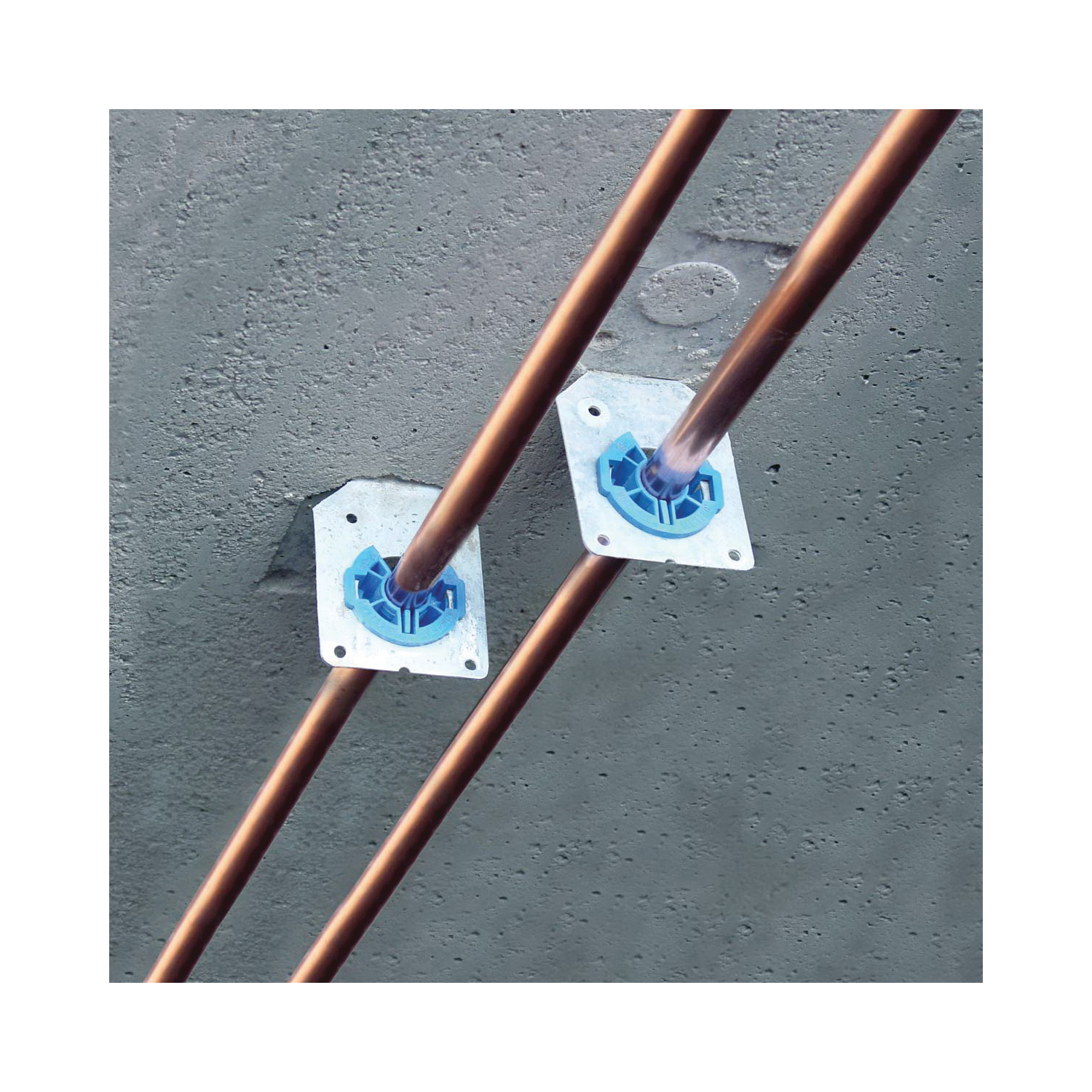

The HOLDRITE® HANGOVER™ concrete insert brackets are installed on wood forms for use with cast-in-place concrete slabs. When the wood forms are stripped away, the HOLDRITE® HANGOVER™ bracket's end tabs are bent into position and are ready to support up to 1 inCTS for horizontal pipe runs.
Holdrite® HANGOVER™ Bracket, 1/2 in, 3/4 in, 1 in CTS Pipe, 150 lb, Cold Rolled Steel, Grade G90, Galvanized, 9-5/8 in L x 5 in H, Domestic
Dimensions
9-5/8 in L x 5 in H
Domestic/Import
Domestic
Finish
Galvanized
Grade
G90
Load Capacity
150 lb
Material
Cold Rolled Steel
Pipe Size
1/2 in, 3/4 in, 1 in CTS
- Galvanized steel bracket that supports one copper, PEX or CPVC tube
- 2 in H cast-in-place hanger
- 18 ga cold rolled steel, 3000 psi, 3 safety factor
- Galvanized steel bracket with 2 in center line height from structure
- Cast in place concrete hanger for horizontal support
- Compatible with HOLDRITE® 400 series and 261/262 inserts
