MegaPress® is an IPS cold press fitting system made of a non-corrosive copper-nickel wrought alloy that provides an economical and reliable installation of Class 200 and SCH 40/STD copper-nickel pipe. The MegaPress® fitting system requires no threading or welding and poses no fire hazard, which is particularly important in restoration or retrofit work. The press fittings are installed with a battery-powered or corded pressing tool. MegaPress® fitting system is offered in configurations that allow for the installation of the vast majority of copper-nickel piping applications in the ship building market. MegaPress® fittings are available in sizes ranging from 1/2 in to 4 in.

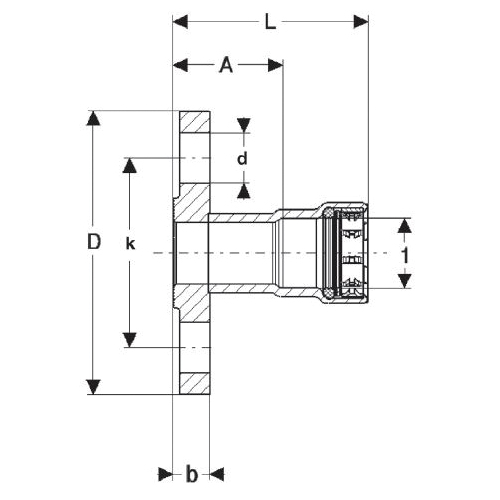

MegaPress® Flange, Series: 559, 1-1/4 x 4 in Nominal, Press x BP, 0.63 in Thickness, SCH 40/STD, 200 lb, 232 psi, 23 to 284 deg F, 90/10 CuNiFe, 4.53 in Dia x 3.23 in W, Import
- No fire watches, hot work permits or gas freeing necessary
- Makes secure press connections from 1/2 in to 4 in seconds
- Installations are completed with a battery operated press tool
- Copper nickel alloy (CuNi 90:10) well suited for marine environments and systems
- Complies with DIN 86019 and with a factory standard governing the accuracy of dimensions and surface quality
- Can be used on SCH 40/STD and class 200 90/10 copper nickel pipe
- Compatible with existing MegaPress® jaws and rings
- MegaPress®i product stocked in North America and ready to ship
- Smart Connect® technology
