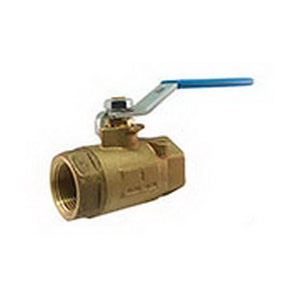

Milwaukee Valve Ball Valve, 2-Piece, Series: 20BB, 1/2 in Nominal, FNPT, 600 psi, Reduced Port, 1/2 in Orifice, Chrome Plated Brass Ball, 2.36 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, PTFE Softgoods, Domestic
Ball Material
Chrome Plated Brass
Body Material
Bronze
Domestic/Import
Domestic
End Style
FNPT
Inlet to Outlet Length
2.36 in
Nominal Size
1/2 in
Orifice Size
1/2 in
Port Type
Reduced
Pressure Rating
600 psi
Series
20BB
Softgoods Material
PTFE
Top to Inlet Center
1.77 in
Trim Material
Brass Stem and RPTFE Seat
Type
2-Piece
- ASTM grade materials used throughout
- Low operating torque
- Chevron style stem-packing
- Full depth NPT threads
- Standard actuator mounting pad
- 150 psi steam working pressure
- 15% glass filled PTFE seat/thrust washer
- Plated carbon steel handle
- Hard chrome plated brass ball
- PTFE thrust washer
