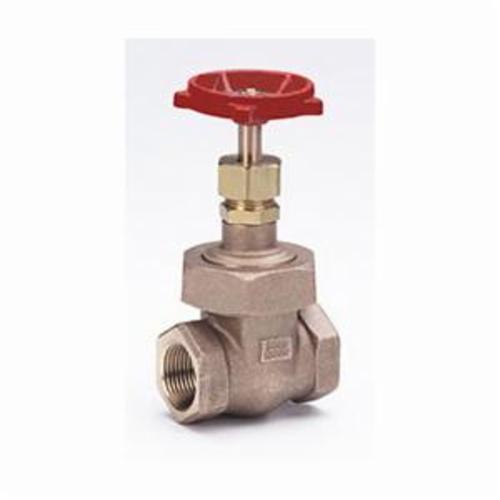

Milwaukee Valve Gate Valve, Series: 1186, 3/4 in Nominal, FNPT End Style, 1000 psi WOG Pressure, 300 lb Pressure Class, 550 deg F, Handwheel Actuator, 2-1/2 in Inlet to Outlet Length, 4.56 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing Softgoods, 2-3/4 in Diameter Hand Wheel, Domestic
Actuator Type
Handwheel
Body Material
Bronze
Domestic/Import
Domestic
End Style
FNPT
Hand Wheel Diameter
2-3/4 in
Inlet to Outlet Length
2-1/2 in
Nominal Size
3/4 in
Pressure Class
300 lb
Pressure Rating
1000 psi WOG
Series
1186
Softgoods Material
Graphite Packing
Temperature Rating
550 deg F
Top to Inlet Center
4.56 in
Trim Material
Bronze
- 300 SWP to 1000 WOG non-shock
- Solid wedge disc
- Non-rising stem
- Gland packed
- Union bonnet
- Wear-resistant stainless seat rings are securely expanded into the body to assure trouble-free service
- Normal seating wear is restricted to the bronze wedge and can be easily replaced
- Malleable iron handwheel
- Not intended for use in potable water
