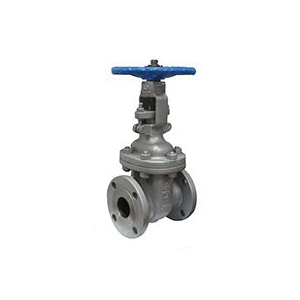

Milwaukee Valve Gate Valve, Series: 1550, 3 in Nominal, Flanged End Style, 150 lb Pressure Class, Handwheel Actuator, 7.99 in Inlet to Outlet Length, 18.62 in Top to Inlet Center, Cast Steel Body, CR13 Trim, Graphite Packing Softgoods, 9.84 in Diameter Hand Wheel
Actuator Type
Handwheel
Body Material
Cast Steel
End Style
Flanged
Hand Wheel Diameter
9.84 in
Inlet to Outlet Length
7.99 in
Nominal Size
3 in
Pressure Class
150 lb
Series
1550
Softgoods Material
Graphite Packing
Top to Inlet Center
18.62 in
Trim Material
CR13
- Standard trim 13 Cr to hard facing API 600
- Cr 13 disc face
- Wrought cast steel body
- Hard faced CoCr seat face
- Revision: Y
