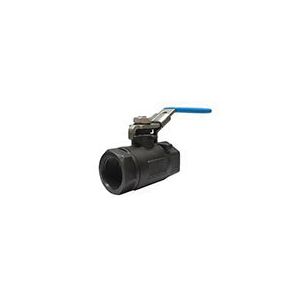

Milwaukee Valve Ball Valve, 2-Piece, Series: 20CS, 2 in Nominal, FNPT End Style, 1500 psi WOG Pressure, Reduced Port, 1-1/2 in Orifice, Latch-Lock Handle Actuator, 316 Stainless Steel Ball, 4.65 in Inlet to Outlet Length, 2.91 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Stem and NXT75 Seat Trim, PTFE Softgoods, Import
Actuator Type
Latch-Lock Handle
Ball Material
316 Stainless Steel
Body Material
Carbon Steel
Domestic/Import
Import
End Style
FNPT
Inlet to Outlet Length
4.65 in
Nominal Size
2 in
Orifice Size
1-1/2 in
Port Type
Reduced
Pressure Rating
1500 psi WOG
Series
20CS
Softgoods Material
PTFE
Top to Inlet Center
2.91 in
Trim Material
316 Stainless Steel Stem and NXT75 Seat
Type
2-Piece
- N1: NXT standard seat
- LL - Patented stainless latch-lock handle
- Multiple V-ring stem packing arrangement for longer packing life
- Vent hole in ball slot for cavity venting
- Mounting pad for easy actuation
- NACE compliant fastener for sour gas service
- Blow-out proof stem
- Cantilever seat design for low operating torque
- Valve is rated 150 psi steam at 365 deg F
- 2-piece adaptor loaded
- Wrought carbon steel body
- PTFE seal/packing and nxt75 thrust washer
