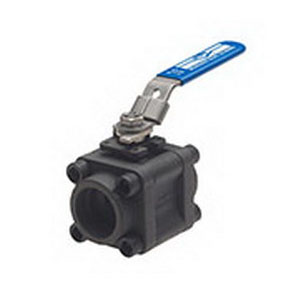

Milwaukee Valve Ball Valve, 3-Piece, Series: 35RSS, 1/2 in Nominal, FNPT End Style, 2000 psi Pressure, 800 lb Pressure Class, Standard Port, Latch-Lock Handle Actuator, 316 Stainless Steel Ball, Stainless Steel Body, 316 Stainless Steel Stem and Peek Seat Trim, Import
Actuator Type
Latch-Lock Handle
Ball Material
316 Stainless Steel
Body Material
Stainless Steel
Domestic/Import
Import
End Style
FNPT
Nominal Size
1/2 in
Port Type
Standard
Pressure Class
800 lb
Pressure Rating
2000 psi
Series
35RSS
Trim Material
316 Stainless Steel Stem and Peek Seat
Type
3-Piece
- LL: Patented stainless latch-lock handle
- Live loaded adjustable stem-packing arrangement for longer packing life
- Standard grounded ball and stem
- ISO 5211 mounting pad for easy actuation
- Flexible graphite body seal
- NACE compliant fastener for sour gas service
- Blow-out proof stem
- Fire safe to API 607 6th edition
- Cantilever seat design for low operating torque
- Valve is rated 150 psi steam at 365 deg F
