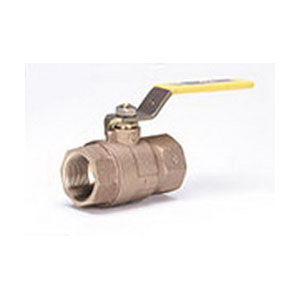

Milwaukee Valve Ball Valve, 2-Piece, Series: BA-100, 3/4 in Nominal, NPT, 600 psi, Full Port, 0.76 in Orifice, Chrome Plated Brass Ball, 2.64 in Inlet to Outlet Length, 2.08 in Top to Inlet Center, Cast Bronze Body, Brass Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic
Ball Material
Chrome Plated Brass
Body Material
Cast Bronze
Domestic/Import
Domestic
End Style
NPT
Inlet to Outlet Length
2.64 in
Nominal Size
3/4 in
Orifice Size
0.76 in
Port Type
Full
Pressure Rating
600 psi
Series
BA-100
Softgoods Material
RPTFE
Top to Inlet Center
2.08 in
Trim Material
Brass Stem and RPTFE Seat
Type
2-Piece
- XM: Extension handle with memory stop
- Blow-out proof stem
- Not intended for use in potable water
- 150 psi working steam pressure
- 15% glass filled RPTFE seat
- 25% glass filled RPTFE thrust washer
- Hard chrome plated brass ball
- Valves rated for vacuum service to 29 in Hg
- Zinc plated steel handle
- RPTFE thrust washer
