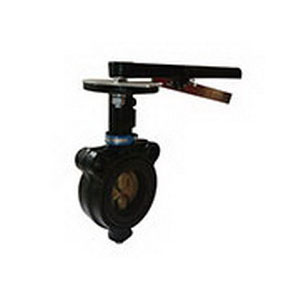

Milwaukee Valve Butterfly Valve, Wafer Style, Series: MW Series, 2-1/2 in Nominal, Lever Handle Actuator, 6 in Top to Inlet Center, Cast Iron Body, Aluminum Bronze Disc, 316 Stainless Steel (Stem)/Stainless Steel (Roll Pin) Stem & Pin Material, Buna-N, 19.94 in H, Domestic
Actuator Type
Lever Handle
Body Material
Cast Iron
Dimensions
19.94 in H
Disc Material
Aluminum Bronze
Domestic/Import
Domestic
Nominal Size
2-1/2 in
Series
MW Series
Softgoods Material
Buna-N
Stem & Pin Material
316 Stainless Steel (Stem)/Stainless Steel (Roll Pin)
Top to Inlet Center
6 in
Type
Wafer Style
- 200 psig non-shock
- Bubble tight shut-off
- Heavy duty design
- Phenolic cartridge design
- Low torque liner
- Low torque polymer bearing standard
- Field repairable
- Extended neck body
- Low profile disc
- Blow-out proof systems
- Vacuum rating to 29 in of mercury
- Note - the wetted surface of this product (in any material combination) contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- Buna-N liner/stem seal
