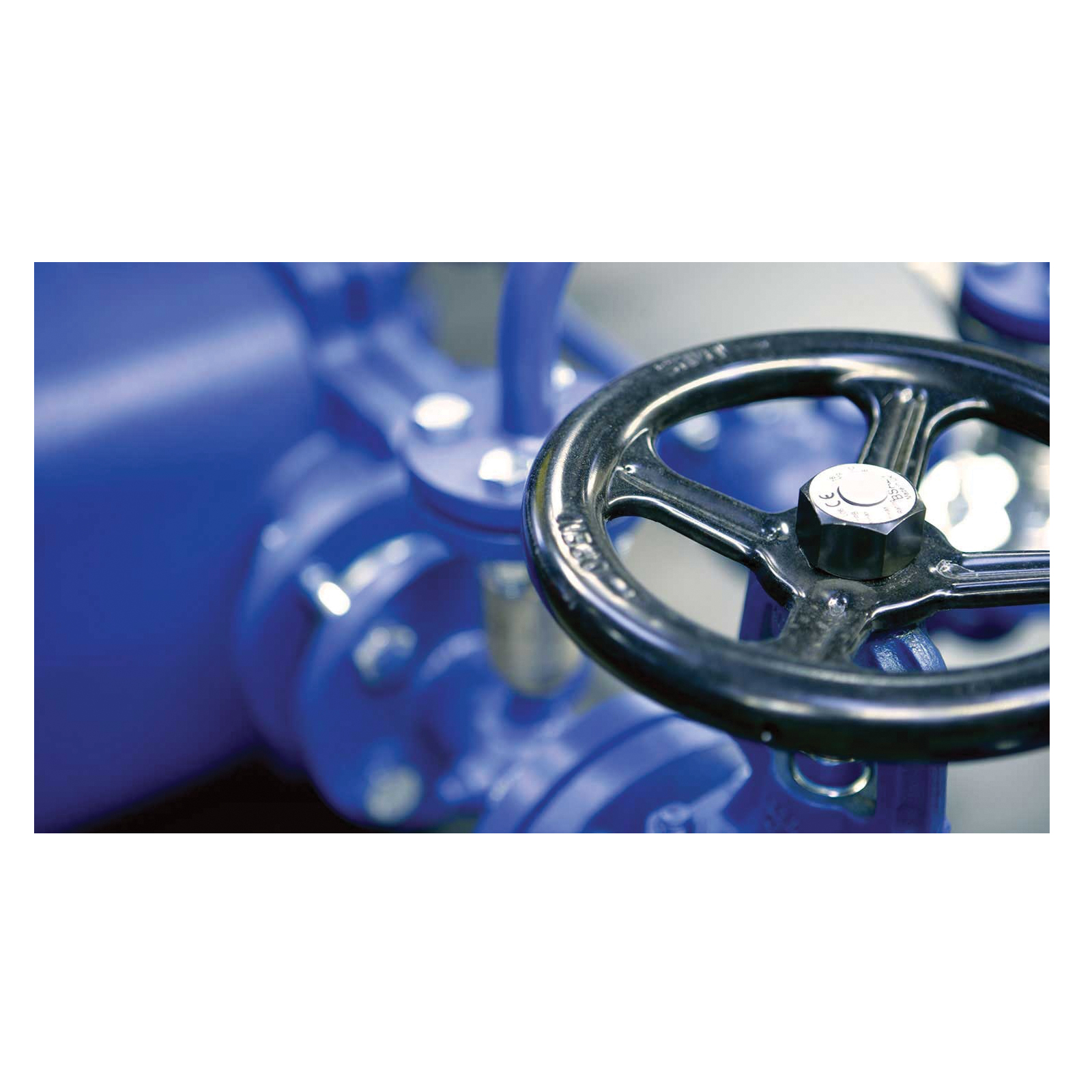

The BSA3T is a low maintenance flanged in-line Bellows Sealed Isolation Valve for use on steam, condensate, gas and other fluid applications where zero emissions from the stem seal are important. BSA3T is fitted with a throttling valve plug that allows close control when opening the valve. Locking screw and stroke limiter maintains correct flow rate once the flow rate is obtained. The "T" version is to be used for regulating duties.
Spirax Sarco Bellow Sealed Stop Valve, Series: BSAT, 3 in Nominal, Flange End Style, 1116 psig Pressure, 150 lb Pressure Class, 797 deg F, Media: Gas/Liquid/Steam/Water, Handwheel Actuator, Cast Steel Body, Stainless Steel Trim, Graphite Softgoods, 9-1/2 in W Dimensions
Actuator Type
Handwheel
Body Material
Cast Steel
Dimensions
9-1/2 in W
End Style
Flange
Media
Gas/Liquid/Steam/Water
Nominal Size
3 in
Pressure Class
150 lb
Pressure Rating
1116 psig
Series
BSAT
Softgoods Material
Graphite
Temperature Rating
797 deg F
Trim Material
Stainless Steel
- A range of sealed, in-line stop valves having twin ply bellows as standard throughout the range
- These valves have been designed for use on steam, gas, liquid, condensate and water systems
- The standard BSAT range comes complete with throttling plug and locking device
- Stainless steel seat, stem and disc
