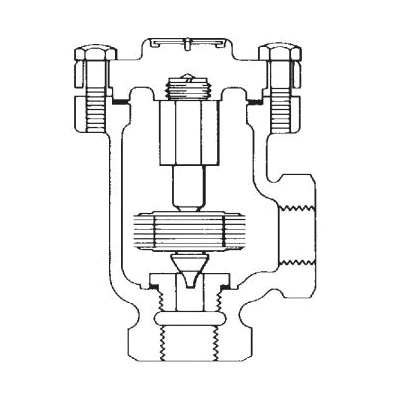

The T250 has a welded stainless steel element, which is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 degF (11 degC) below saturated steam temperature.
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Angle Pattern, 1/2 in Nominal, NPT, 250 psig Operating, Cast Iron, 4.56 in H
Dimensions
4.56 in H
Domestic/Import
Domestic
End Style
NPT
Material
Cast Iron
Nominal Size
1/2 in
Pressure Rating
250 psig Operating
Series
T250
Type
Angle Pattern
- Saturated steam operating temperature
- stainless steel internals
- Maximum allowable pressure: 250 psig at up to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- 6000 lb/hr capacity hot condensate
- 0.375 in orifice
- 20 deg F below saturated steam temperature
- Horizontal installation
- Adjust automatically to varying steam pressures
- Excellent air venting characteristics during plant start-up and during normal operation
- Large discharge capacities for their size
- Robust design of the internals gives a good life expectancy
