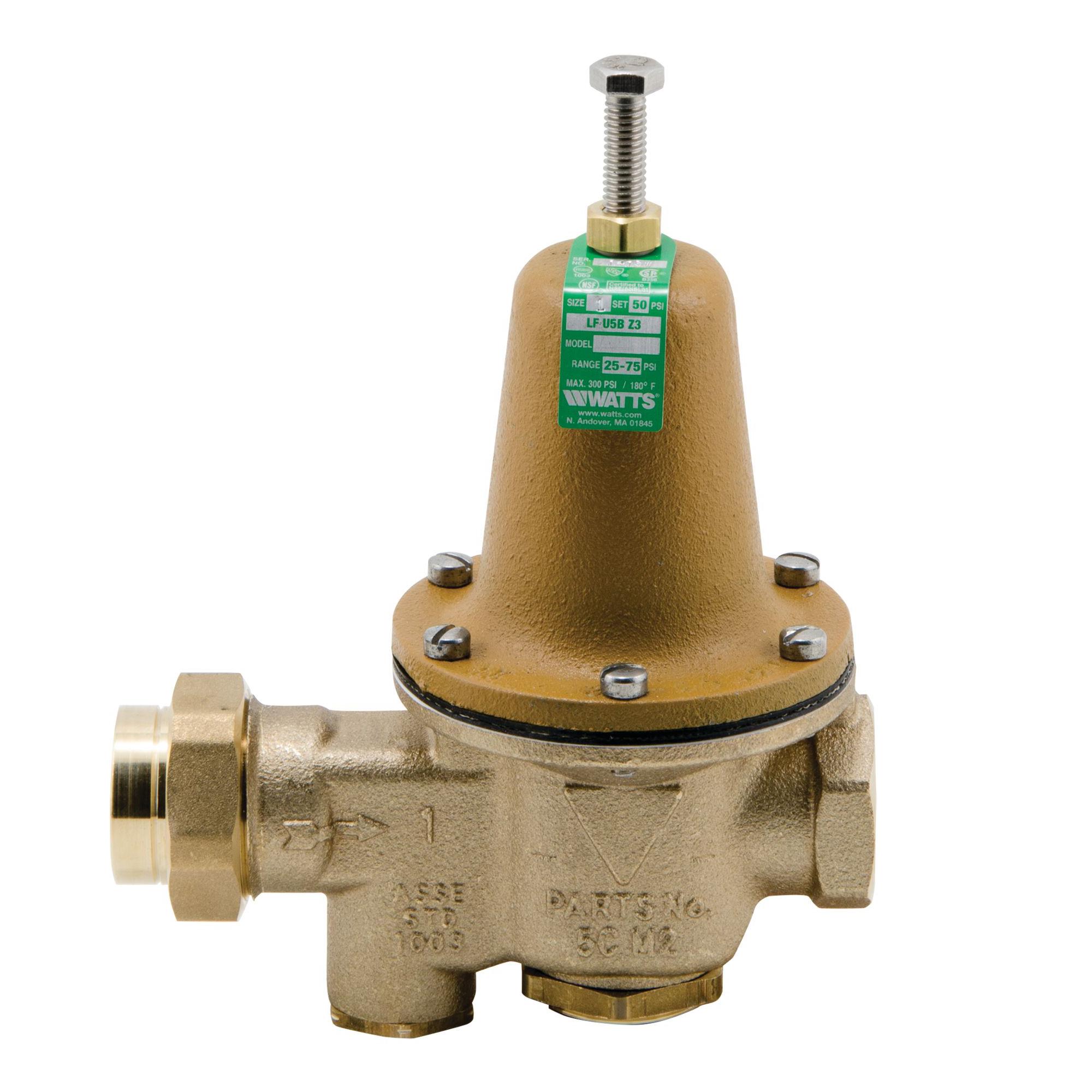

This 1 inch lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS®, 0009154, Pressure Reducing Valve, High Performance, Series: LFU5B, 1 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 6-5/8 in Inlet to Outlet Length, 7-3/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Stainless Steel Trim, Reinforced EPDM Diaphragm Softgoods
- Bypass feature controls thermal expansion pressure
- Replaceable seat module
- Sealed spring cage with stainless steel cage screws
- Serviceable in line without special tools
- Integral stainless steel strainer removable for cleaning
