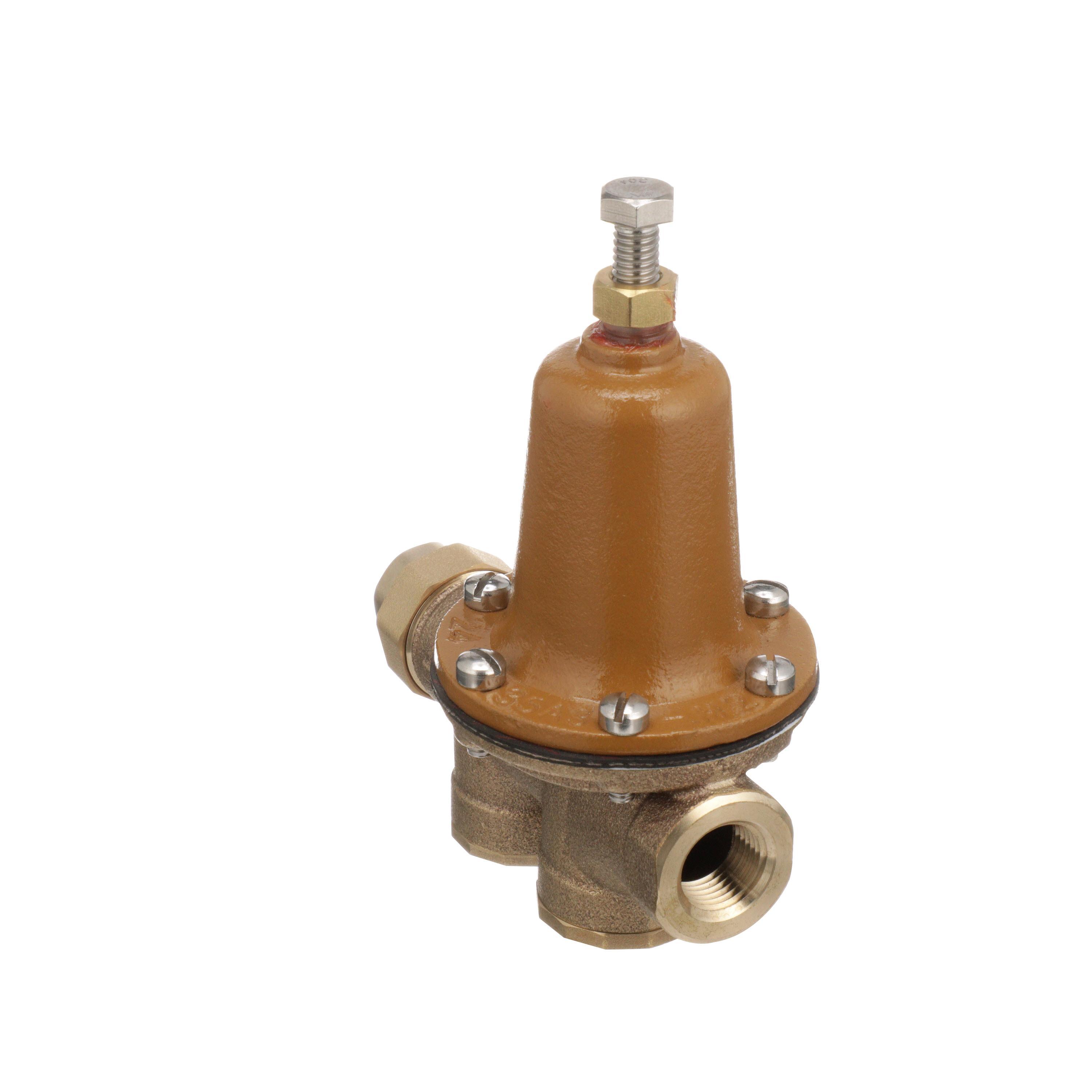

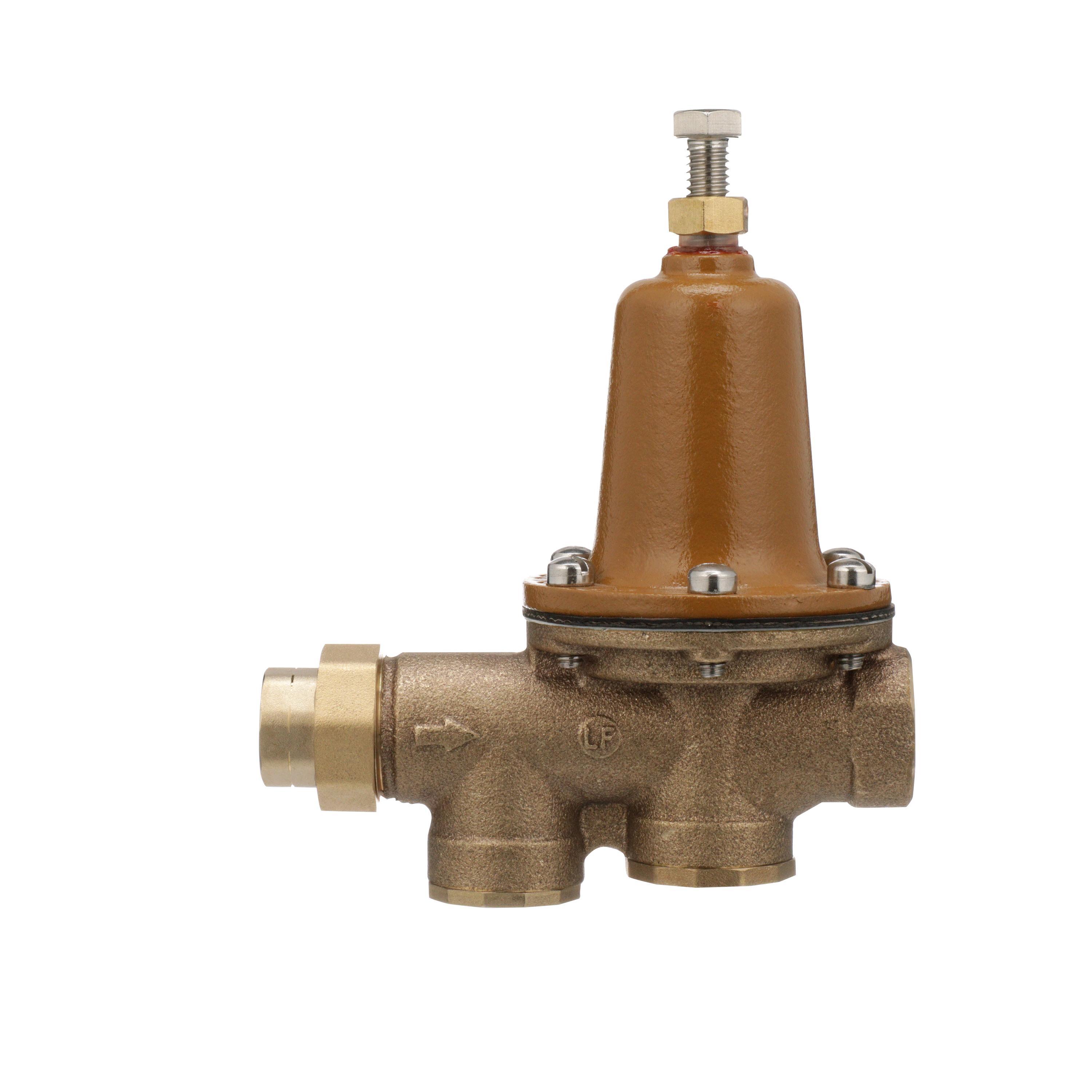

This 1/2 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS®, 0009217, Pressure Reducing Valve, Lead Free, Series: LF25AUB, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 5-3/8 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat Softgoods
- Bypass feature controls thermal expansion pressure
- Replaceable seat module
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
