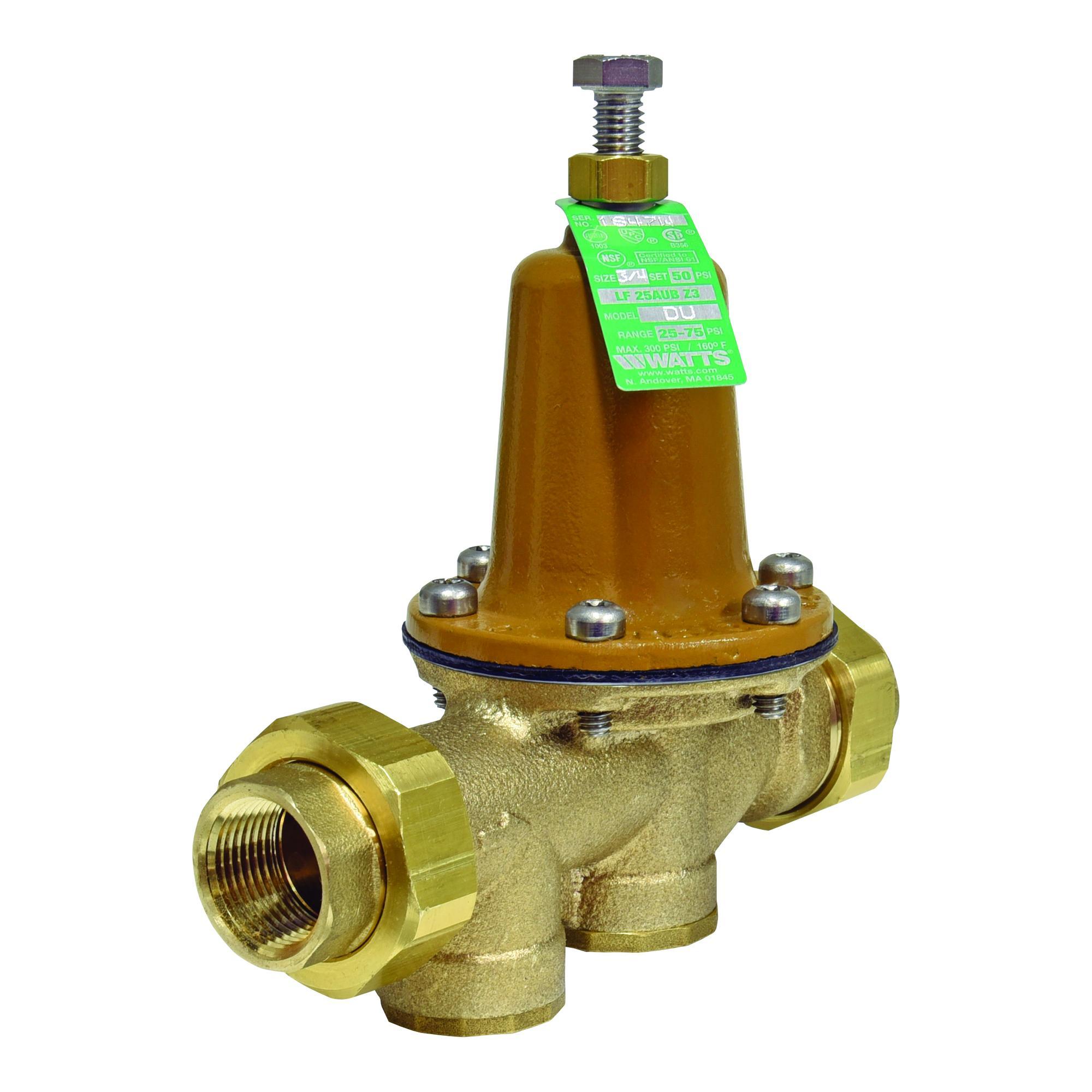

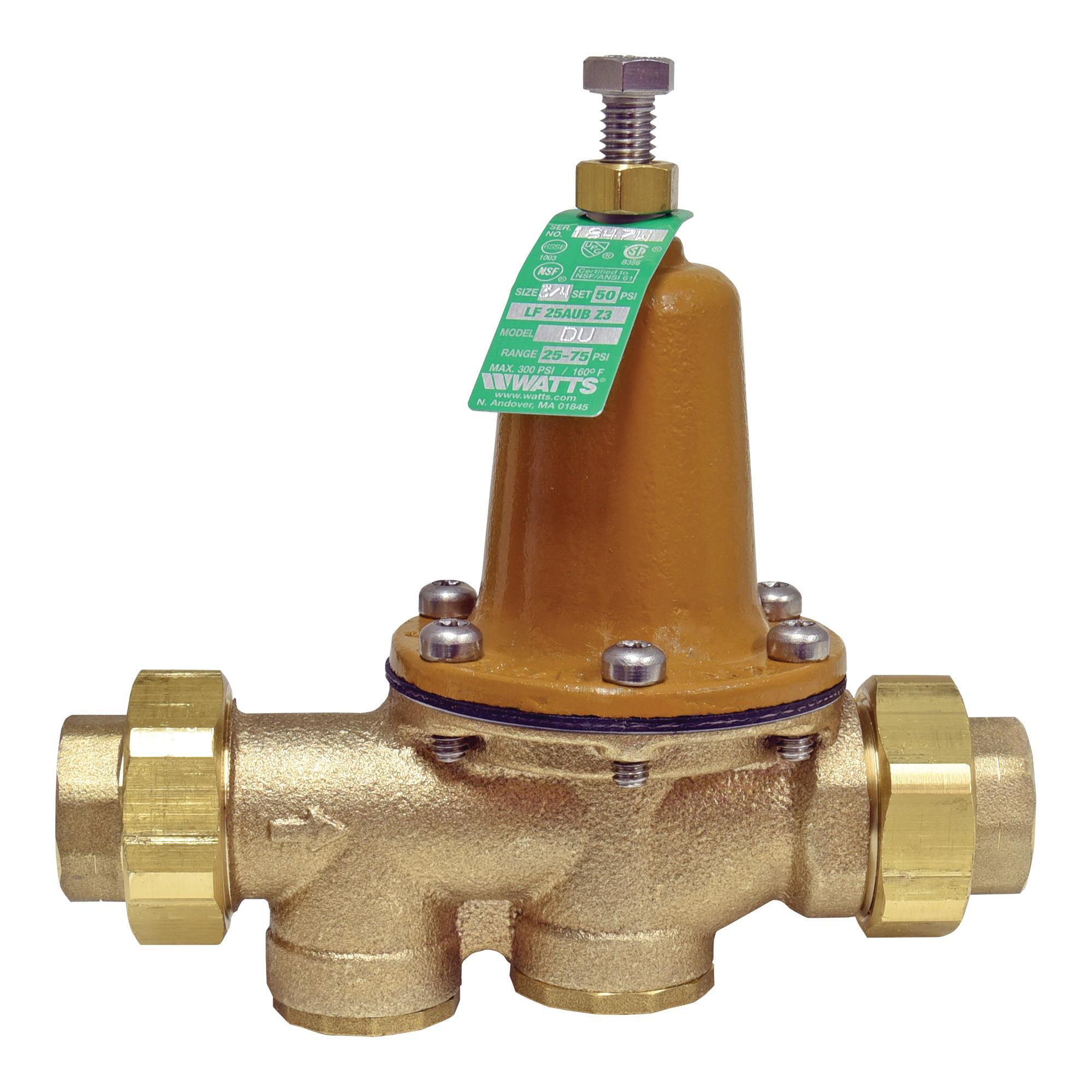

This 3/4 inch lead free copper silicon alloy water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, double union NPT threaded female inlet and outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS®, 0009258, Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-Z3, 3/4 in Nominal, Double Union FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Diaphragm Softgoods, 7 in H Dimensions
- Serviceable in line
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Industry-trusted design with proven track record for longevity, reliability and flow performance
- Sealed spring cage with stainless steel cage screws
- Bypass feature controls thermal expansion pressure
