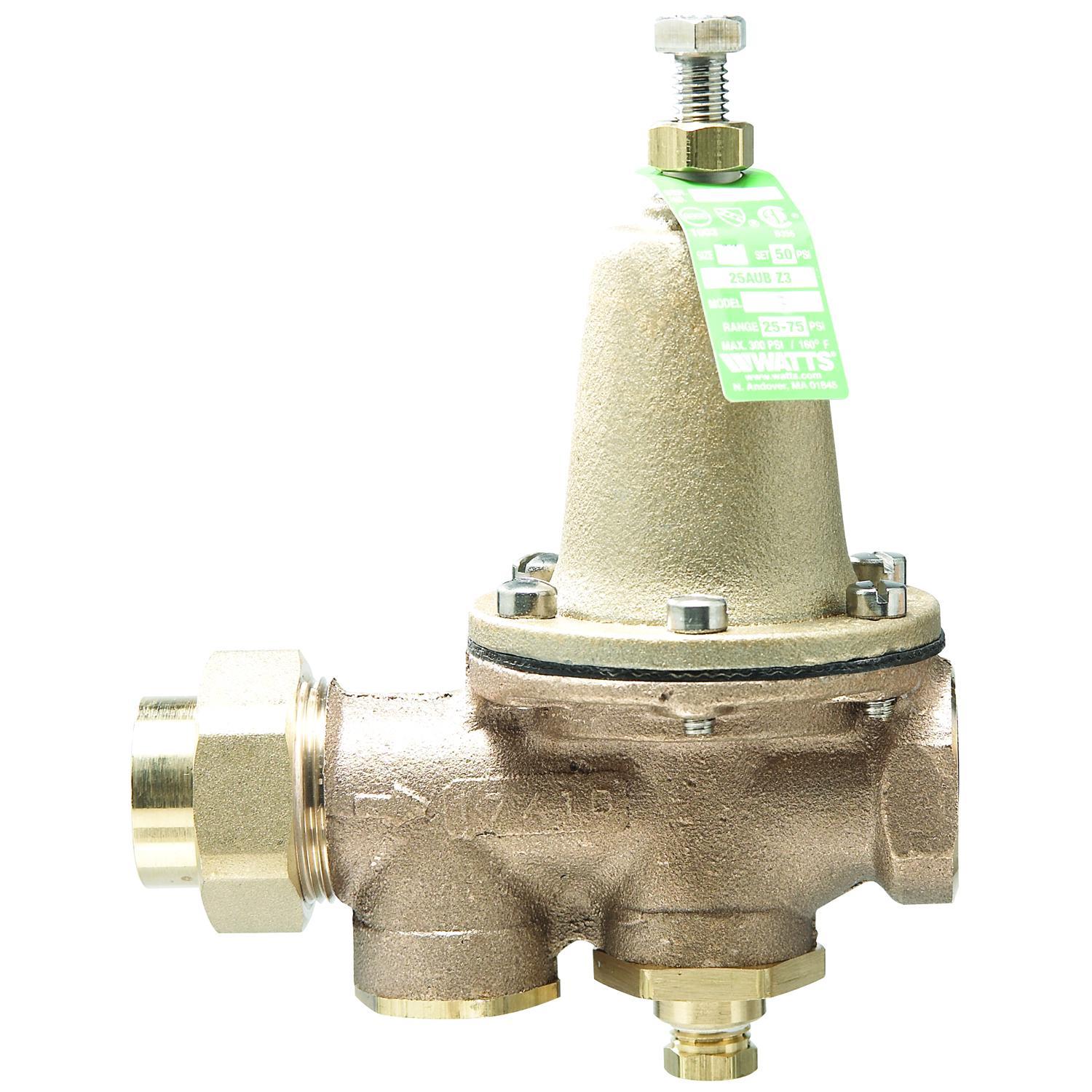

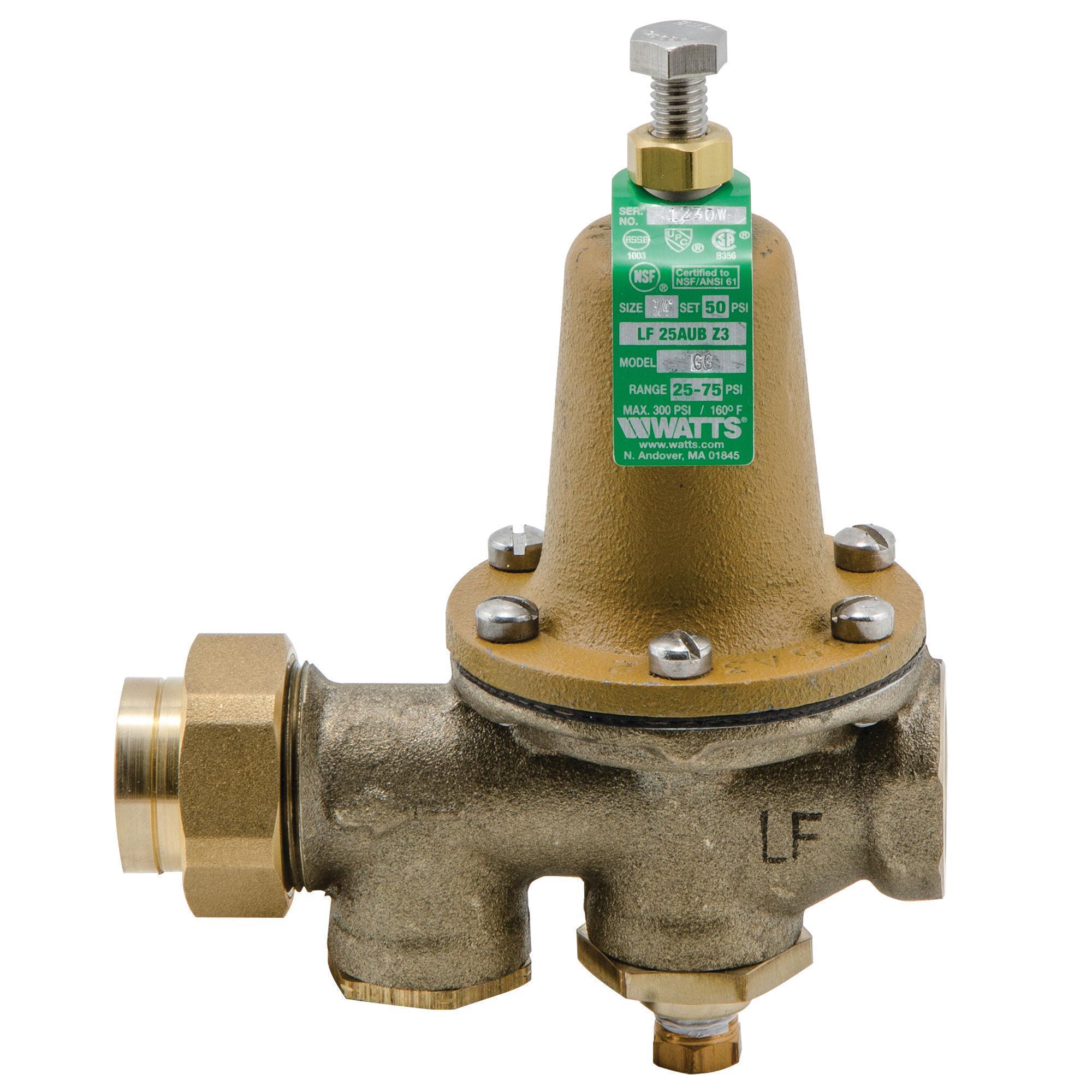

This 3/4 inch lead free brass water pressure reducing valve is equipped with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS®, 0009278, Pressure Reducing Valve, Standard, Series: LF25AUB-Z3, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Disc Trim, Engineered Polymer Seat Softgoods, 7 in H Dimensions
- Lead free brass body construction
- 1/8 in ga tapping
- Replaceable seat module
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
