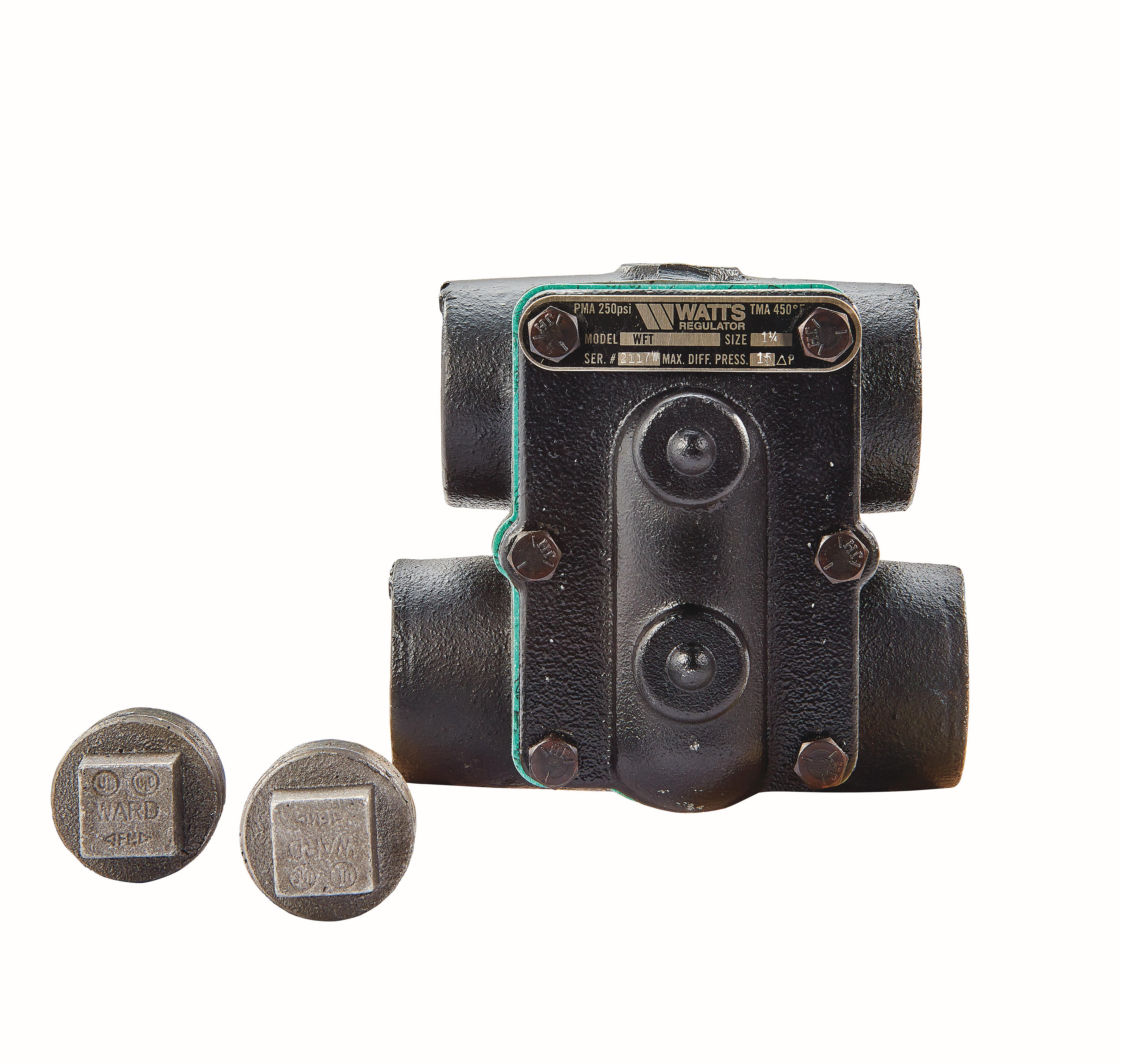

This float and thermostatic steam trap, 1 IN with .218 orifice, is used in steam main drips and process applications to provide continuous air venting and condensate removal. It features an iron body H-pattern design, stainless steel valve head, seat, float and thermostatic air vent. It is water hammer resistant and can be serviced without disturbing system piping and it is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment. Operating pressure is 30 psi.
WATTS®, 0037110, Float and Thermostatic Steam Trap, Series: WFT, 1 in Nominal, NPT End Style, 6-1/4 in Length, 30 psi Pressure, Cast Iron, 353 deg F, 5-1/2 in W Dimensions
Dimensions
5-1/2 in W
End Style
NPT
Length
6-1/4 in
Material
Cast Iron
Nominal Size
1 in
Pressure Rating
30 psi
Series
WFT
Temperature Rating
353 deg F
- Universal 4-port design
- Water hammer resistant
- All stainless steel internal components protect against erosion and corrosion
- Extra-long life and dependable service
- 0.218 Psi orifice
