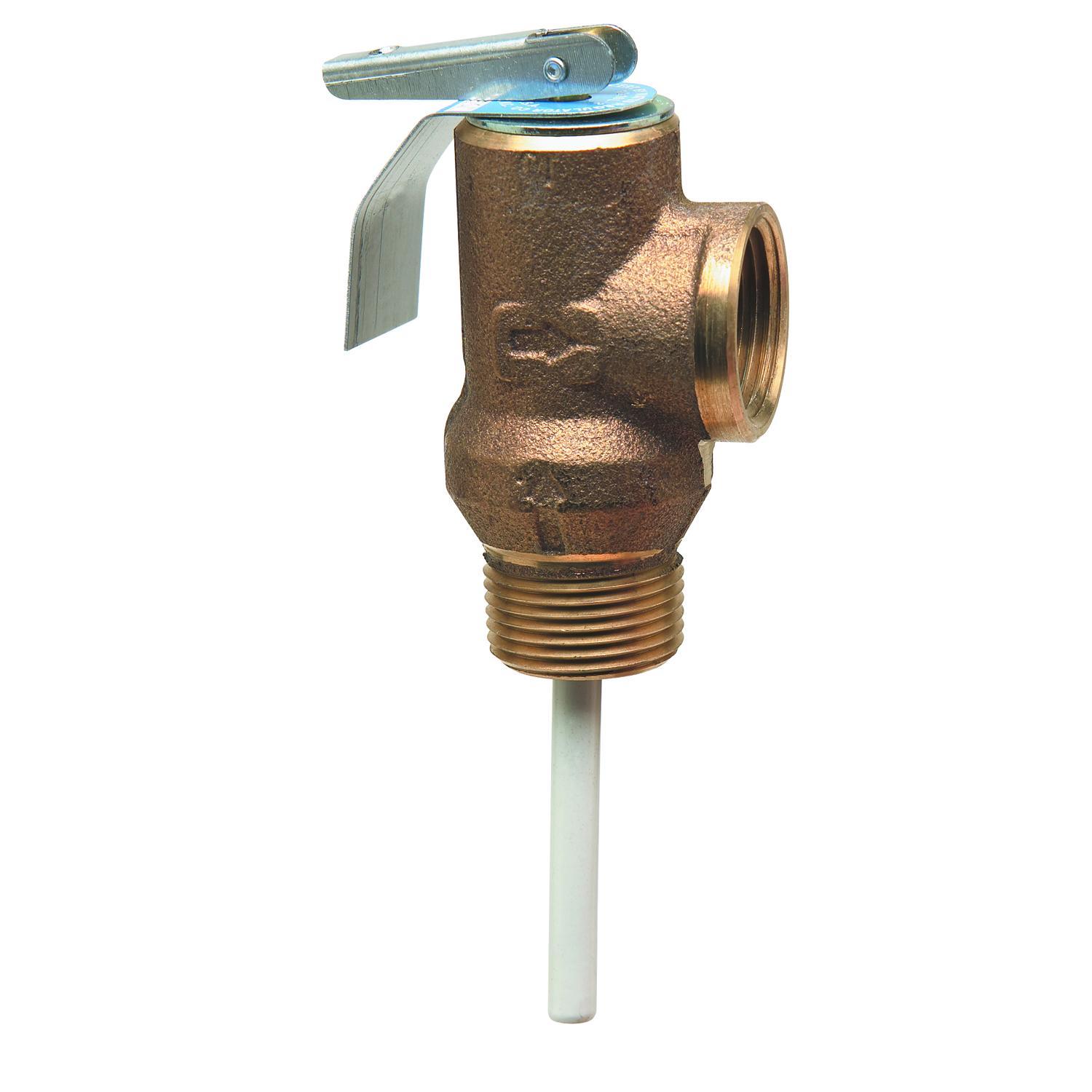

This 3/4 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 80,000 BTU/hr. It features a bronze body with NPT threaded male inlet and NPT threaded female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief is 125 psi (8.6 bar).

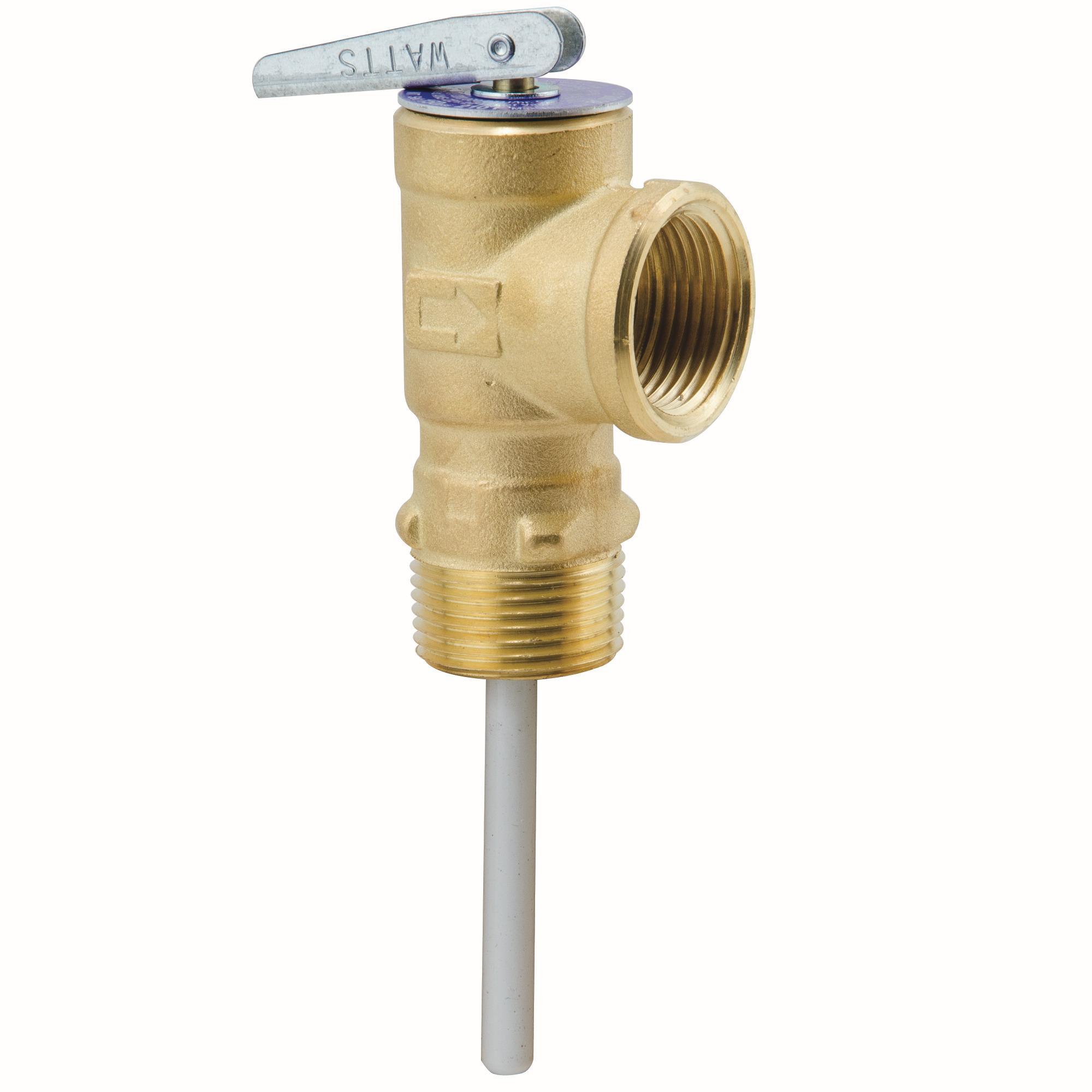

WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, Series: 10L, 3/4 in Nominal, MNPT x FNPT End Style, 210 deg F, Media: Water, Spring-Loaded Latch-Lock Handle Actuator, Brass Body
Actuator Type
Spring-Loaded Latch-Lock Handle
Body Material
Brass
End Style
MNPT x FNPT
Media
Water
Nominal Size
3/4 in
Series
10L
Temperature Rating
210 deg F
Type
Automatic Reseating
- Soft seated
- Features a unique thermostat with special thermo-bonded coating
- Stainless steel spring
- Thermostat is accurate and proven
- 125 Psi standard pressure settings
