This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU per hour. This two in one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is set at 125 psi (8.6 bar).

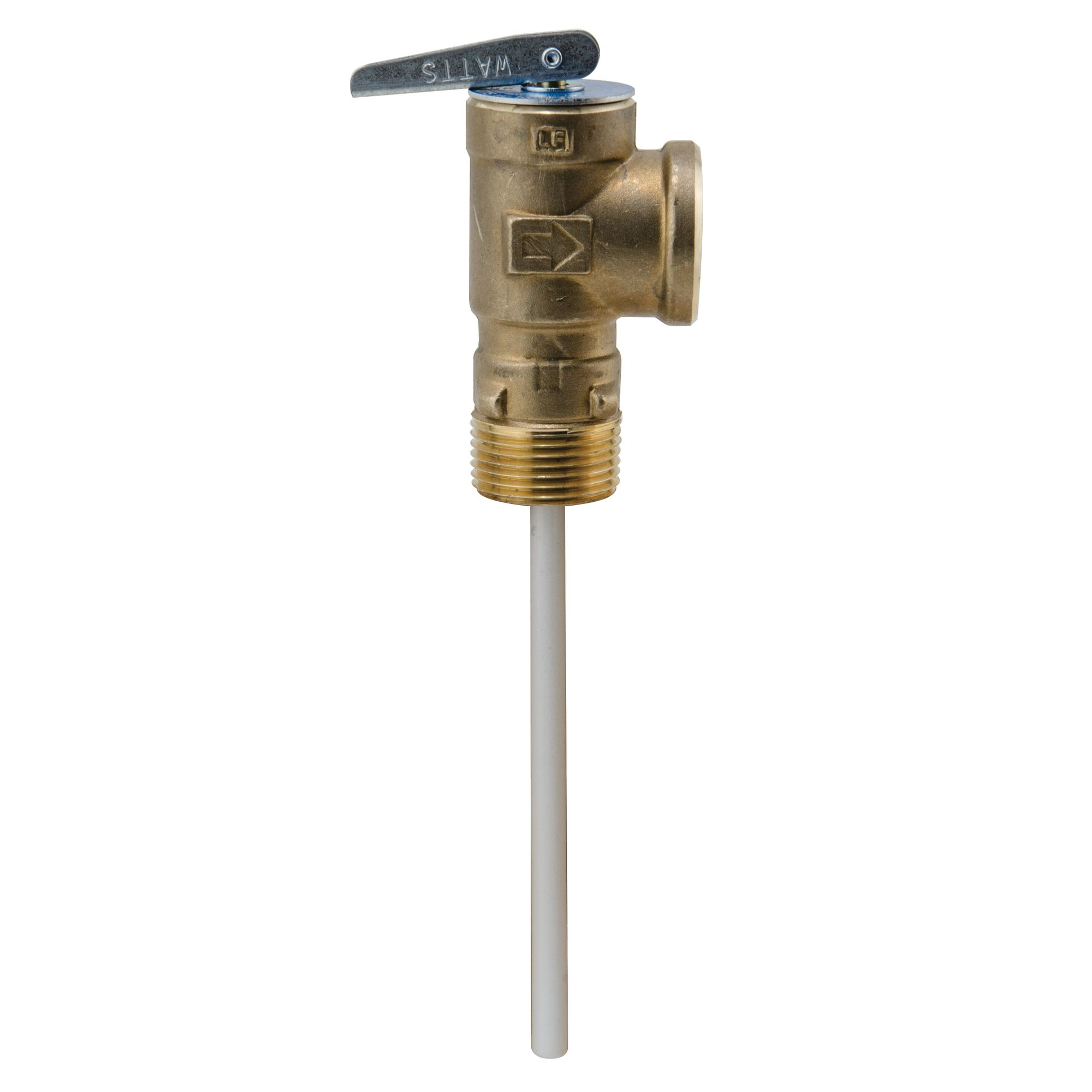

WATTS® Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 125 psi, 210 deg F, Media: Water, Copper Alloy Body
- Features a unique thermostat with special thermo-bonded coating
- Stainless steel spring
- Thermostat is accurate and proven exclusively designed and manufactured by WATTS
- Maximum system operating pressure must not exceed 75% of valve set pressure
- 3/4 IN male by 3/4 IN female NPT connection
- Protects against excessive temperature and pressure during emergency conditions
