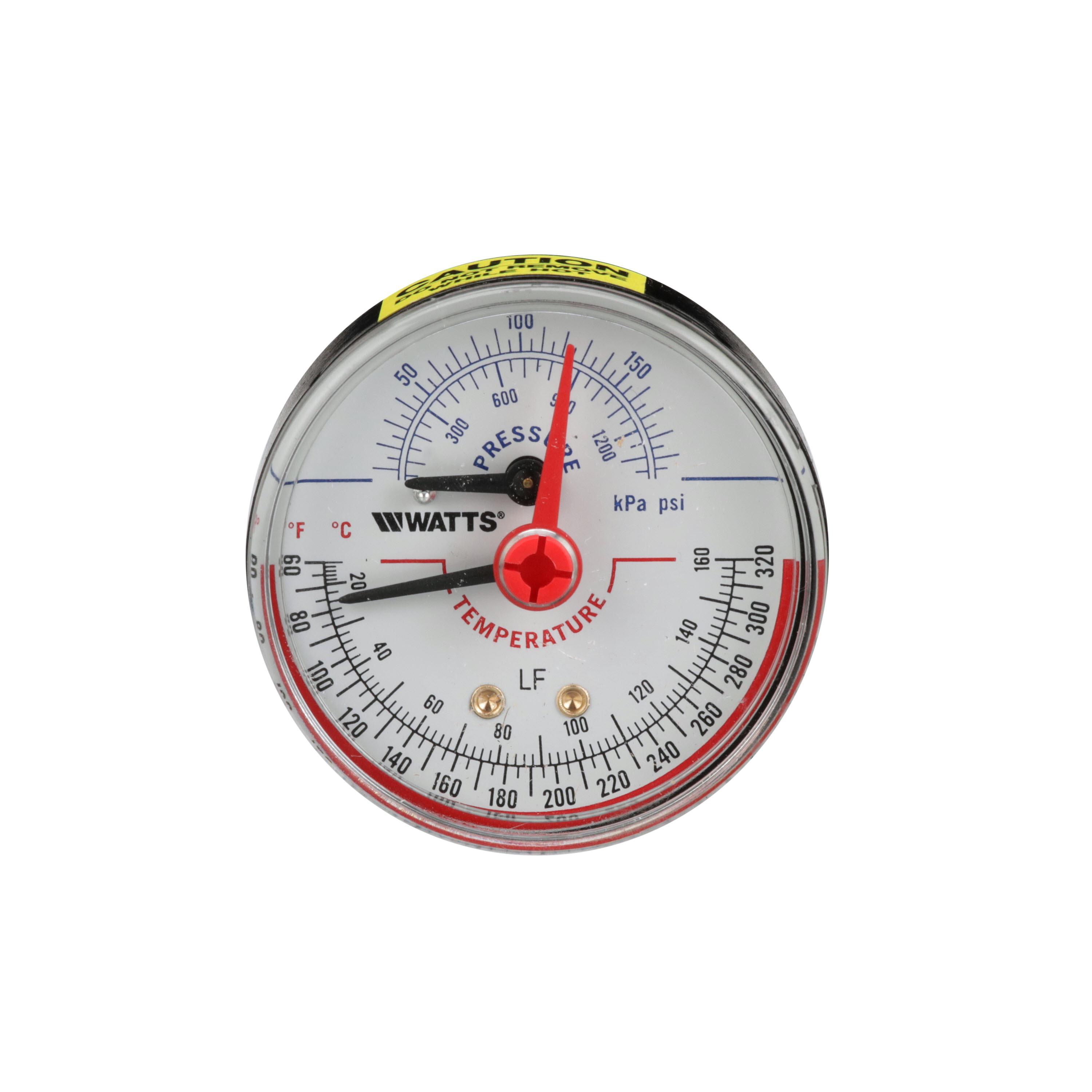

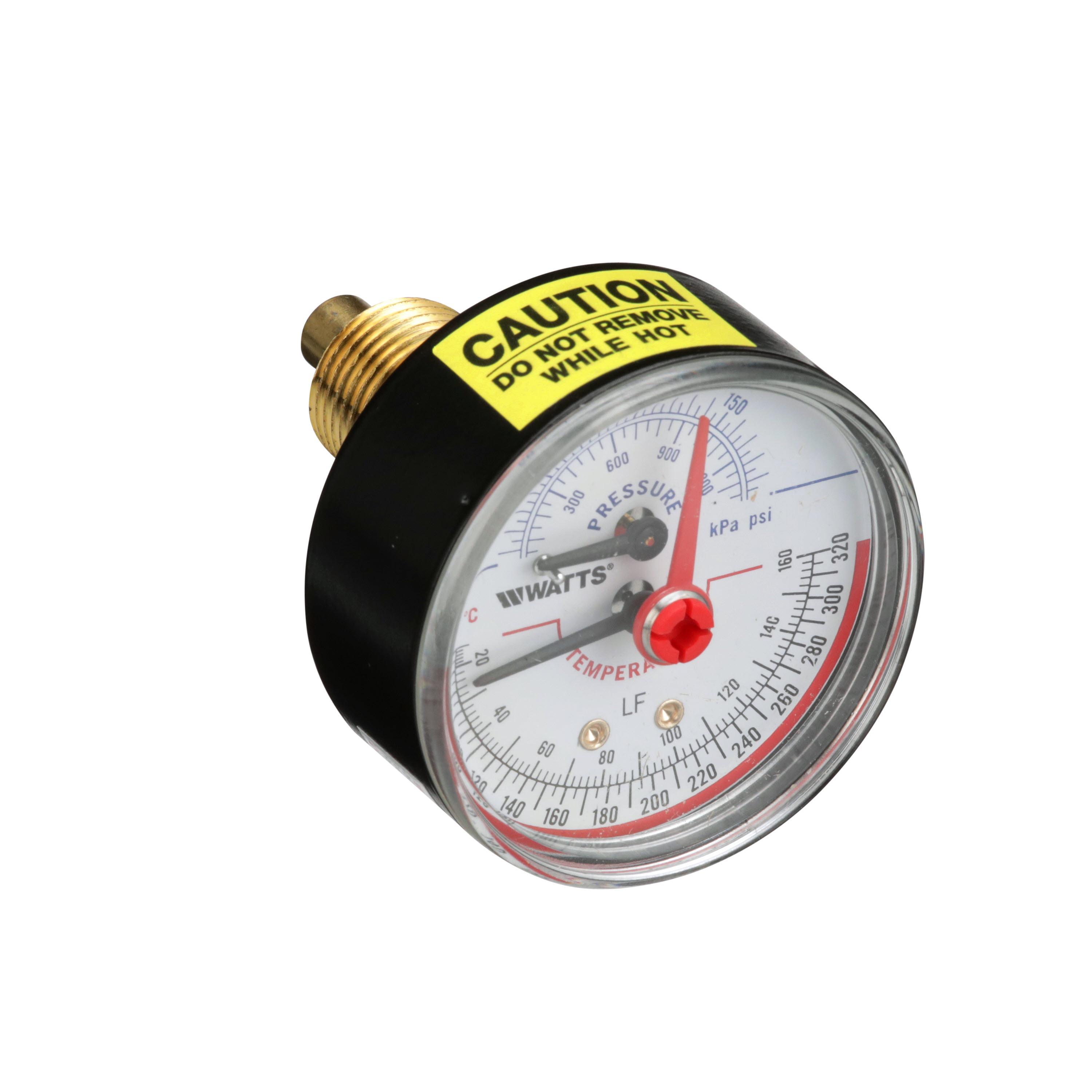

This 1/2 inch lead free combination pressure and temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a center, back-entry, black enamel steel case, Kostil Polymer window, 1/2 inch NPT connection, copper alloy Bourdon tube pressure element, and bimetal spiral spring. Accuracy is ASME, Type B. This gauge features a 3 inch dial with pressure rating scale from 0 to 200 psi and temperature range 60 to 320 degrees F.
WATTS® Combination Pressure and Temperature Gauge, 0 to 200 psi, 1/2 in NPT, 3 in Dial Diameter, 60 to 320 deg F, Center Back Mount, Steel Case, Enamel Painted, Black, 3 in Dia
Color
Black
Connection Size
1/2 in NPT
Dial Diameter
3 in
Dimensions
3 in Dia
Finish
Enamel Painted
Material
Steel Case
Mounting Type
Center Back
Pressure Range
0 to 200 psi
Series
LFDPTG3
Temperature Rating
60 to 320 deg F
- Kostil polymer window
- Copper alloy bourdon pressure element
- Bimetal spiral spring temperature element
- Tin alloy welding
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 1/2 IN (15 MM) NPT connection
