This potable water expansion tank is used on gas, oil, electric, indirect-fired, commercial water heater and hot water storage tank applications to absorb the increased volume of water created by thermal expansion. It also maintains balanced pressure throughout the water supply system by keeping system pressure below the T&P relief valve setting. This carbon steel tank with field-adjustable air charge is built with ASME Section VIII construction, tank volume 8.0 gallons, pre-charged to 40 psi, has fixed FDA-approved butyl rubber diaphragm, and 3/4 inch stainless steel male NPT inlet connection and a 0.302-32 inch charging valve connection (standard tire valve) to facilitate on-site charging of the tank to meet system requirements. An expansion bladder prevents air-to-water contact in the tank ensuring a long system life. The maximum pressure rating is 150 psi (10 bar).

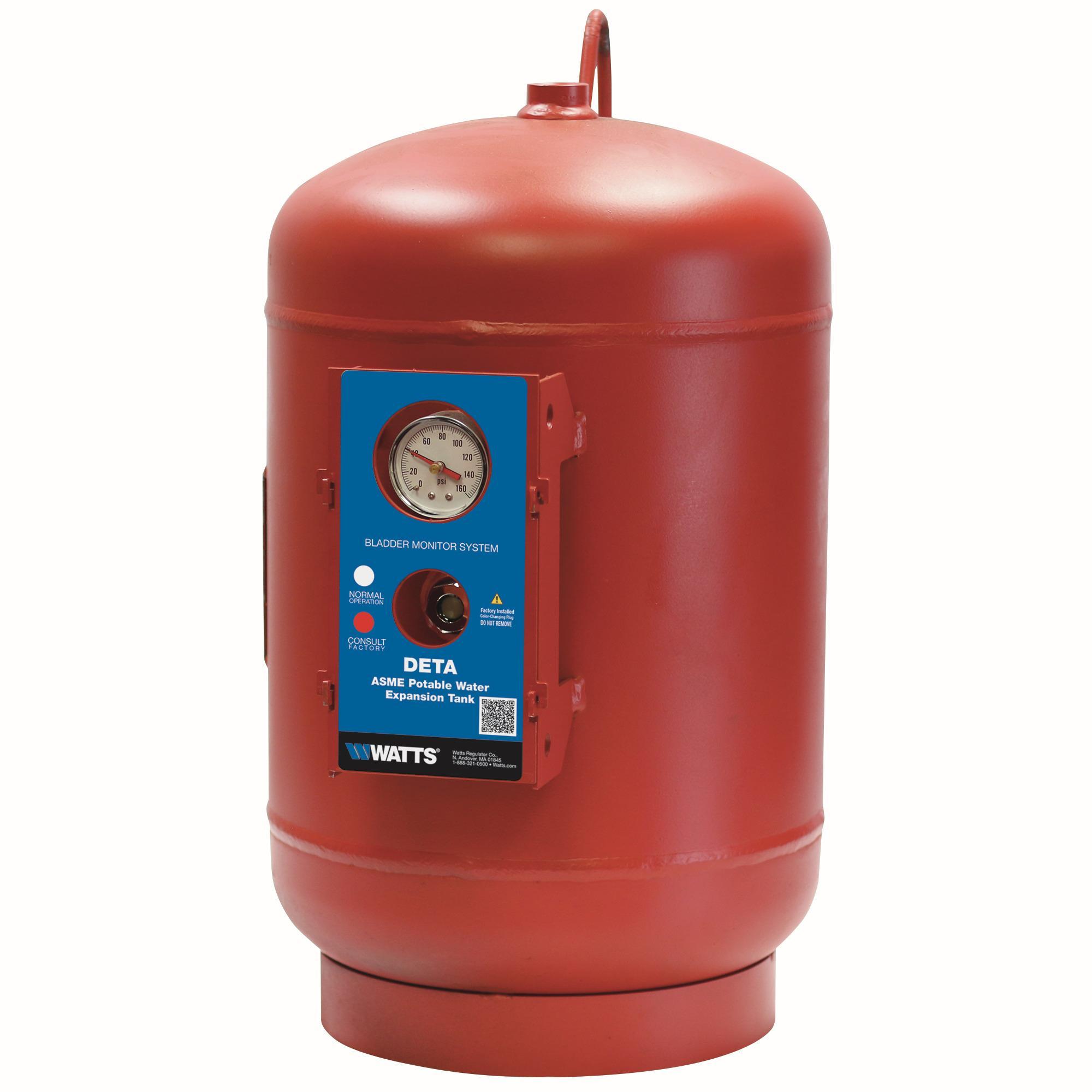

WATTS® Expansion Tank, Pressurized, Series: DETA, 8 gal Tan, 5.3 gal Acceptance Volume, 150 psi, ASME Yes/No: Yes, 12 in Dia, 20 in Height, Carbon Steel, 40 psi Pre-Pressure Rating, 240 deg F Maximum Temperature, NPT, 3/4 in
- Heavy duty fixed butyl rubber bladder with bladder monitor system
- In-line and free standing models
- Can be used with most standard hot water heaters and storage tanks
- Field adjustable
- This rugged diaphragm minimizes loss of the air change and ensures long and trouble-free life for the system
- The water is contained in a butyl bladder
- They are designed to accept the expanded volume of hot water keeping the system pressure below the relief valve setting
