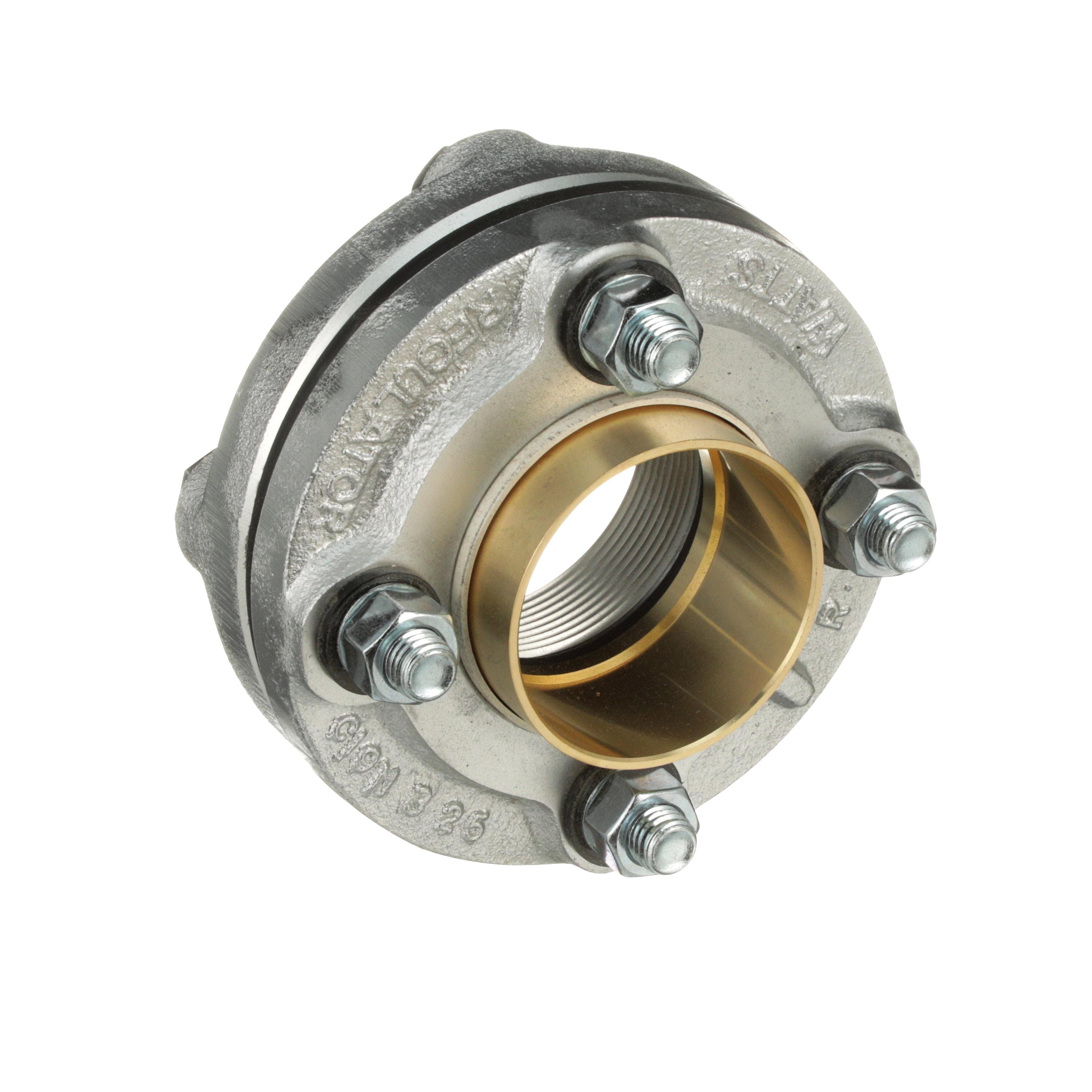

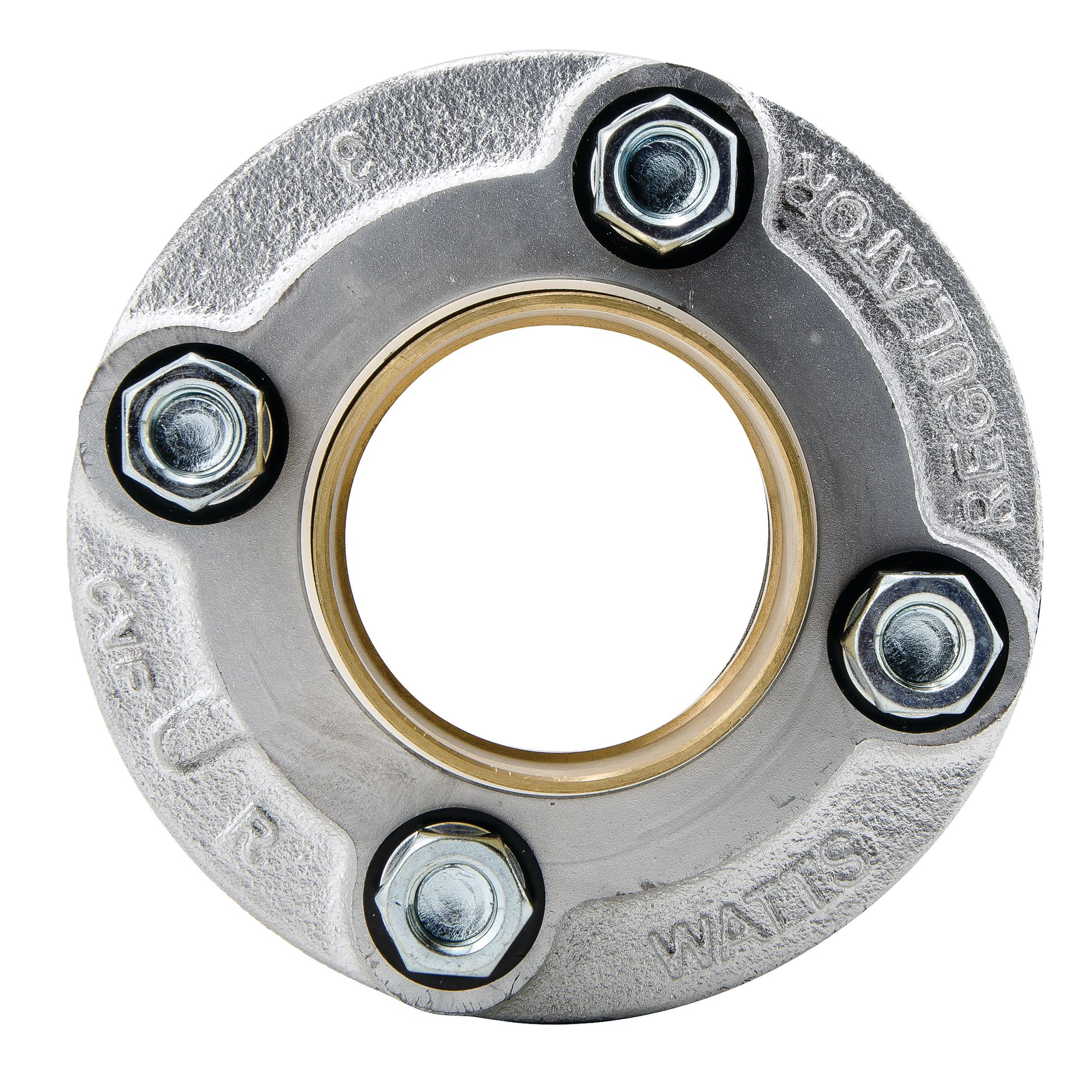

This 4 inch lead free dielectric flange pipe fitting is designed for commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current from connections of dissimilar metals. Ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of an iron pipe thread to copper solder joint flange tailpiece with an EPDM gasket and hardware. The maximum temperature is rated up to 300 degrees F (149 degrees C). The maximum pressure is rated at 50 psi (3.4 bar).
WATTS® Dielectric Flanged Pipe Fitting, 4 in Nominal, FNPT x C, 4-3/4 in Length, 175 psi, 180 deg F, 10-1/8 in OD Flange
Dimensions
10-1/8 in OD Flange
End Style
FNPT x C
Length
4-3/4 in
Nominal Size
4 in
Pressure Rating
175 psi
Series
LF3100M3
Temperature Rating
180 deg F
- Iron pipe thread to copper solder joint connections
- Designed and manufactured to the highest quality standards
- Lead free brass union tailpiece
- Gray iron adapter
- Zinc plated steel bolts and nuts
- Polysulfone insulator
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Maximum pressure is 50 psi (3.4 bar)
- Maximum temperature 300 deg F (149 deg C)
