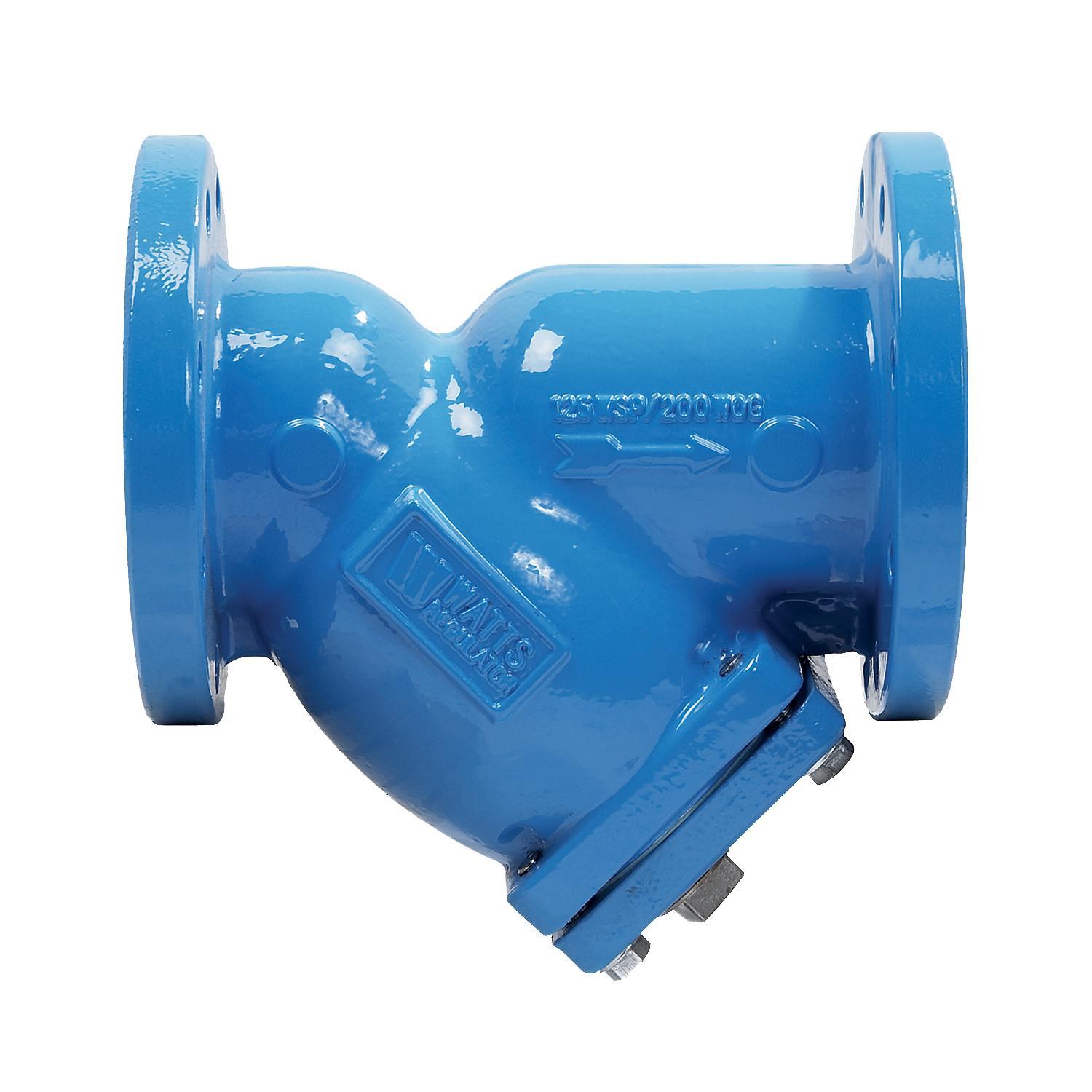

This 2 1/2 inch cast iron flanged wye pattern strainer has 304 stainless steel perforated screens, a cast iron flanged retainer cap and a drain blow off connection furnished with a closure plug. The strainer also features a double coated, heat fused epoxy coating on the interior and exterior for FDA approved sanitary applications.
WATTS® Wye Strainer, Series: 77F-DI-FDA-125, 2-1/2 in Nominal, 10 in Overall Length, Flange, 1 in NPT Blow-Off, Graphite, Cast Iron Body, Epoxy Coated, B Grade, Import
Blow-Off Size
1 in NPT
Body Material
Cast Iron
Connection Type
Flange
Domestic/Import
Import
Finish
Epoxy Coated
Grade
B
Nominal Size
2-1/2 in
Overall Length
10 in
Series
77F-DI-FDA-125
Softgoods Material
Graphite
- Wye pattern
- 304 Stainless steel perforated screens
- Flanges conform to american national standards Institute, class 125 (ANSI B16.1) and WW-S-2739 type 2
- Flanged
