WATTS® 565997

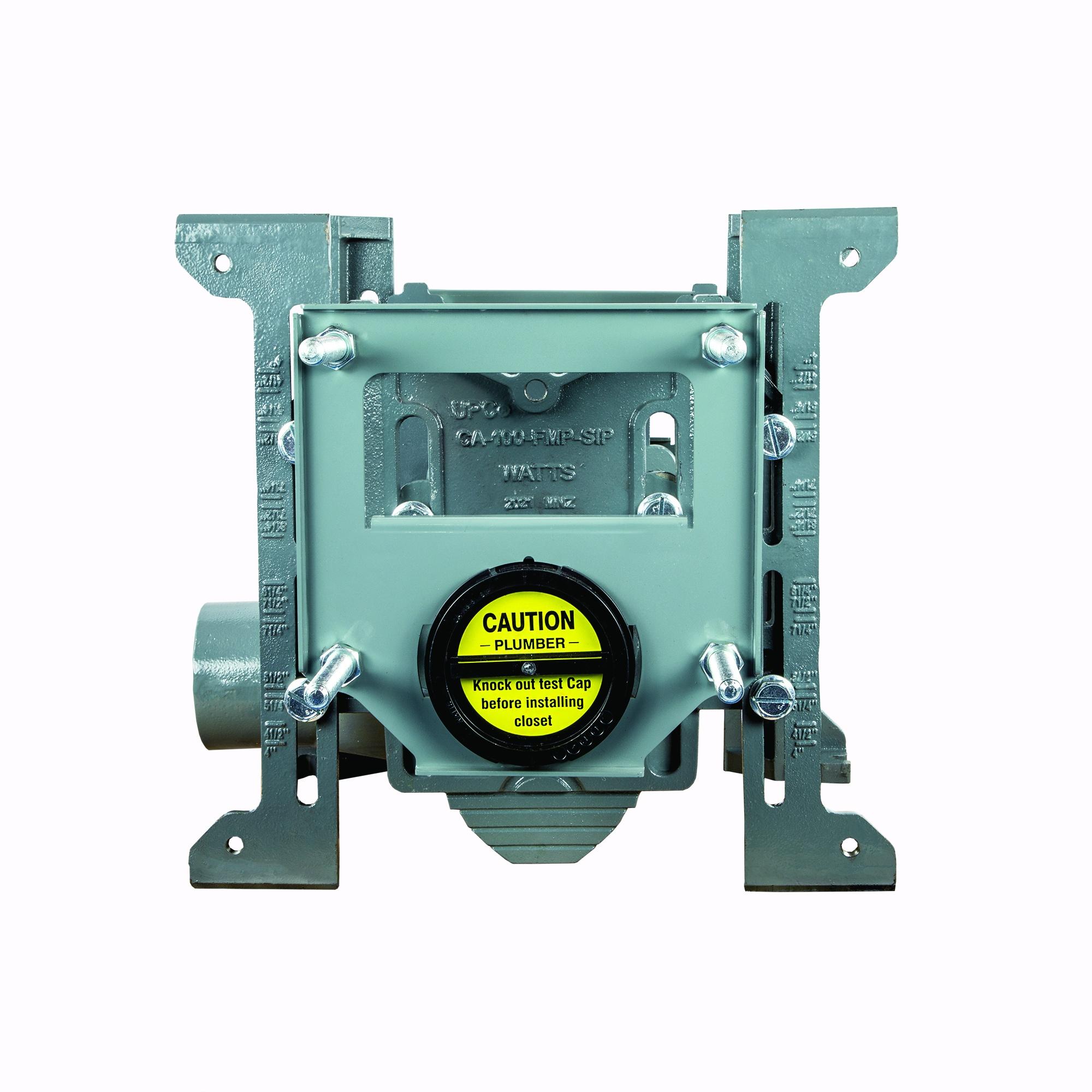

WATTS® QuickTurn™ QT-101-D Adjustable Back-to-Back Horizontal Left to Right Reversible Water Closet Carrier, 500 lb Static Load, 2 in No-Hub Vent, 4 in No-Hub Waste, Cast Iron, Epoxy Coated, Import
This Watts QT QuickTurn(TM) back-to-back horizontal, wall mount carrier is designed to improve pre-fab efficiency. The QT carrier uprights marry effectively with angle iron or mounting rails for multi-carrier shop assembly and transport to job site. One-size bolts and nuts eliminate the need to change out sockets during installation. The smooth ABS QT nipple with integral test cap seals with an O-ring, eliminating the need for thread sealants and creating a repeatable seal for adjustability from outside the finished wall. The QT wall plate aligns flush with the finished wall and locks the quarter-turn nipple in at the proper depth. Manufactured from epoxy coated cast iron, the QT carrier fitting, patent pending faceplate assembly and foot supports provide long life and durability. It features 4 inch no hub waste and 2 inch no hub vent connections, a neoprene bowl gasket, plated hardware and chrome cap nuts, and is adjustable to various heights.
WATTS® QuickTurn™ Water Closet Carrier, Adjustable Back-to-Back Horizontal Left to Right Reversible, Specifications: 500 lb Static Load, 2 in No-Hub Vent, 4 in No-Hub Waste, Cast Iron, Epoxy Coated, 18-3/4 in W x 17-3/4 in H Dimensions, Import
- Integral test cap
- Neoprene bowl gasket
- Bearing plate
- Wall mounted
- Handicapped height
- Tiling frame
- Valve support plate
- Patent pending wall plate
- Quarter-turn locking nipple seals mechanically with an O-ring
- Nipple is fully adjustable from outside finished wall
- 3/8 in threaded flush valve mounting bosses
