Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. Threaded ends comply with ANSI B1.20.1.

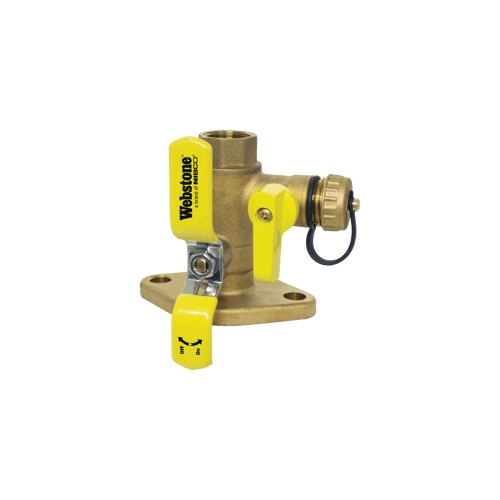

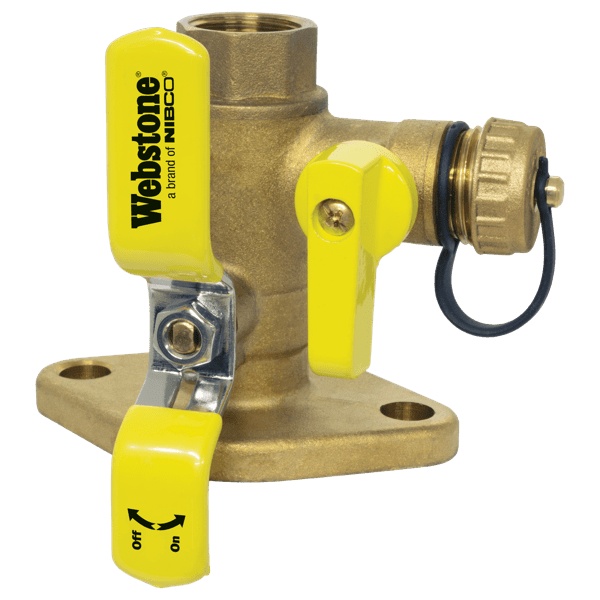

Webstone The Isolator®, 40414, Ball Valve, Standard Uni-Flange, Series: 4041, 1 in Nominal, FNPT x Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1 in Orifice, Wing Style T-Handle Actuator, 4-3/16 in Inlet to Outlet Length, 2-3/8 in Top to Inlet Center, Forged Brass Body, EPDM/PTFE Softgoods, Import
Actuator Type
Wing Style T-Handle
Ball Material
HCP Brass
Body Material
Forged Brass
Color
Brass
Domestic/Import
Import
End Style
FNPT x Flange
Inlet to Outlet Length
4-3/16 in
Media
Glycol Mixture/Oil/Water
Nominal Size
1 in
Orifice Size
1 in
Port Type
Full
Pressure Rating
600 psi CWP
Series
4041
Softgoods Material
EPDM/PTFE
Temperature Rating
100 deg F
Top to Inlet Center
2-3/8 in
Trim Material
Brass/PTFE
Type
Standard Uni-Flange
- Easily Isolates the Pump for Replacement
- Prevents Electrolysis and Eliminates Galvanic Corrosion
- Flange Features a Conical Inlet to Minimize Turbulence
- Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
- Fits Virtually Any Standard Circulator Pump
- Saves 63 min
- Replaces 8 Components
- This valve is actuated by a blowout proof stem
