High flow rates and low fall-off are the hallmarks of the Zurn® Wilkins 500XL Series. The 500XL is perfect for your commercial or industrial pressure reduction applications.

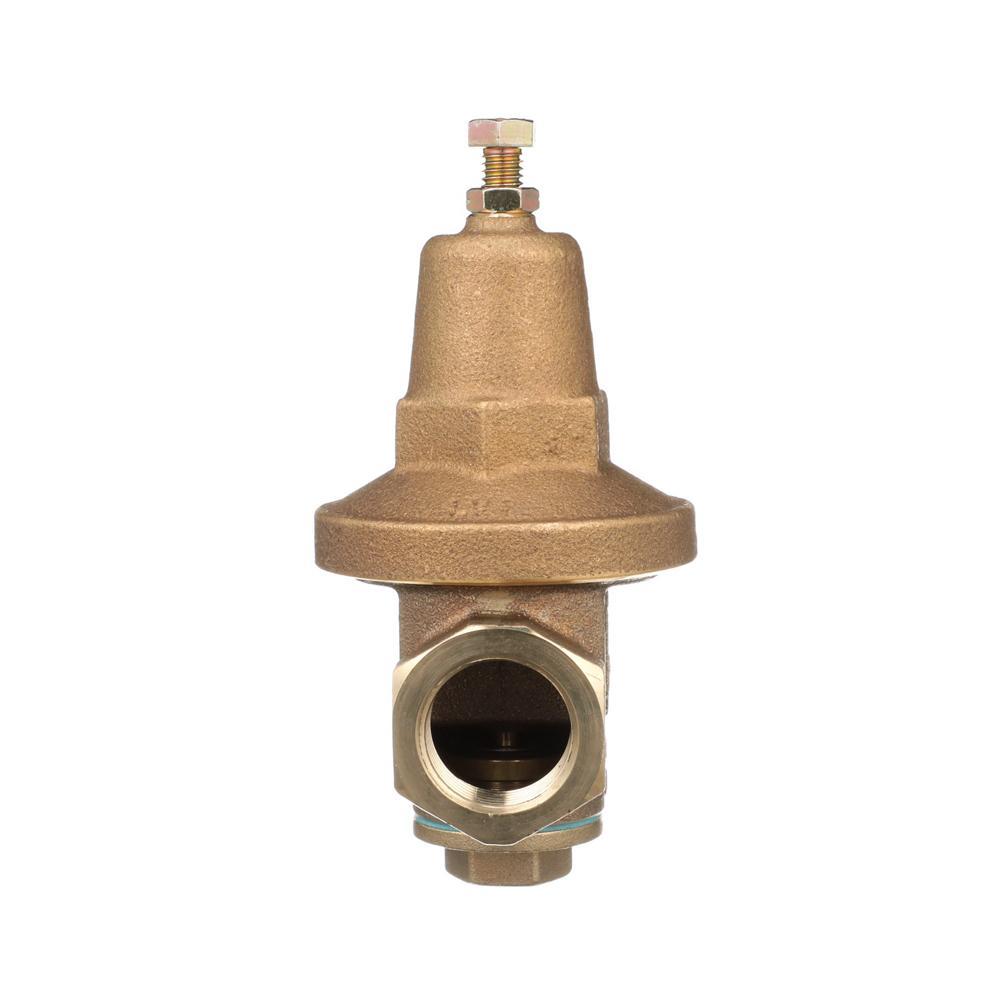

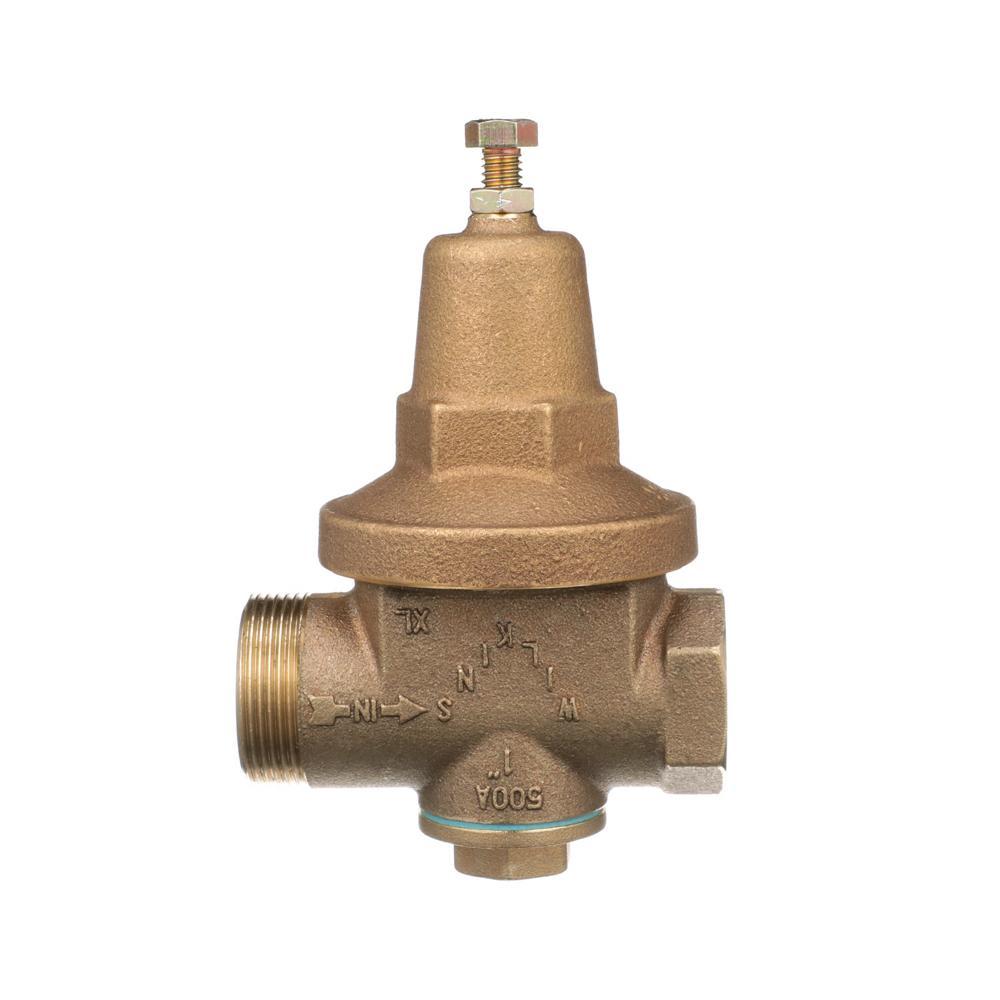

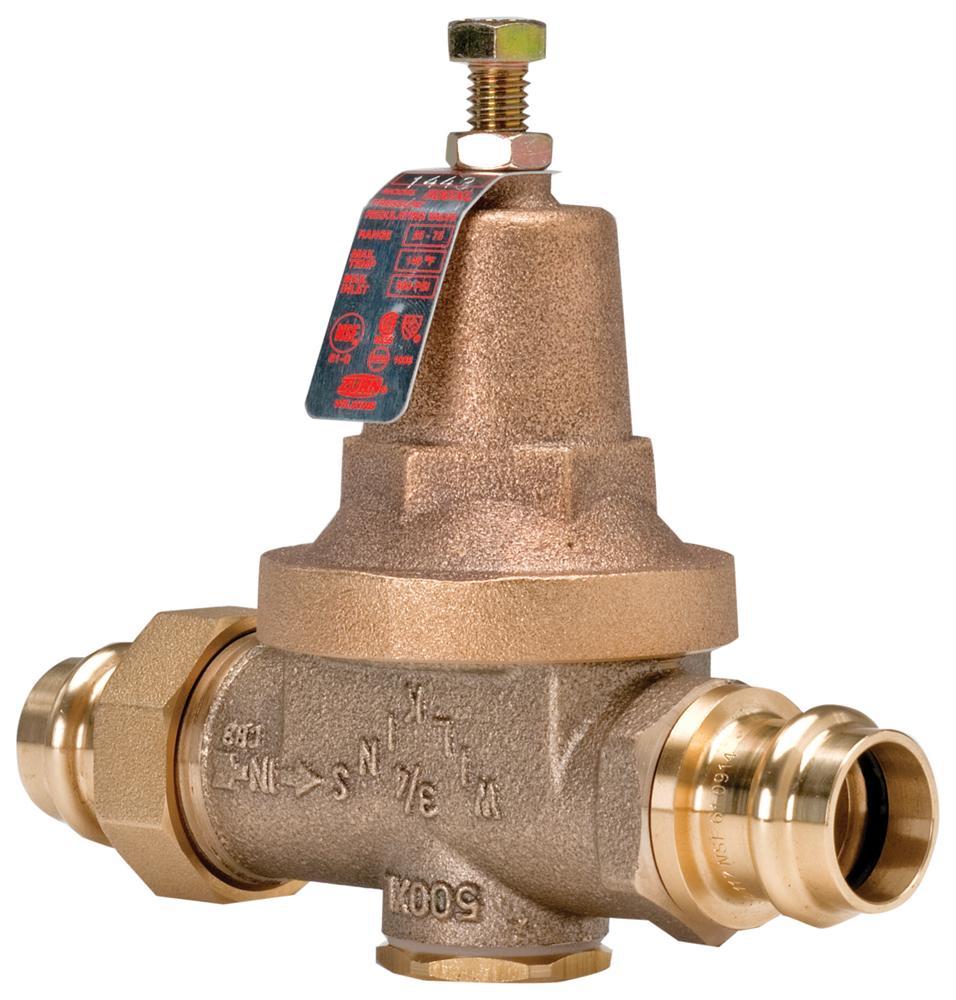

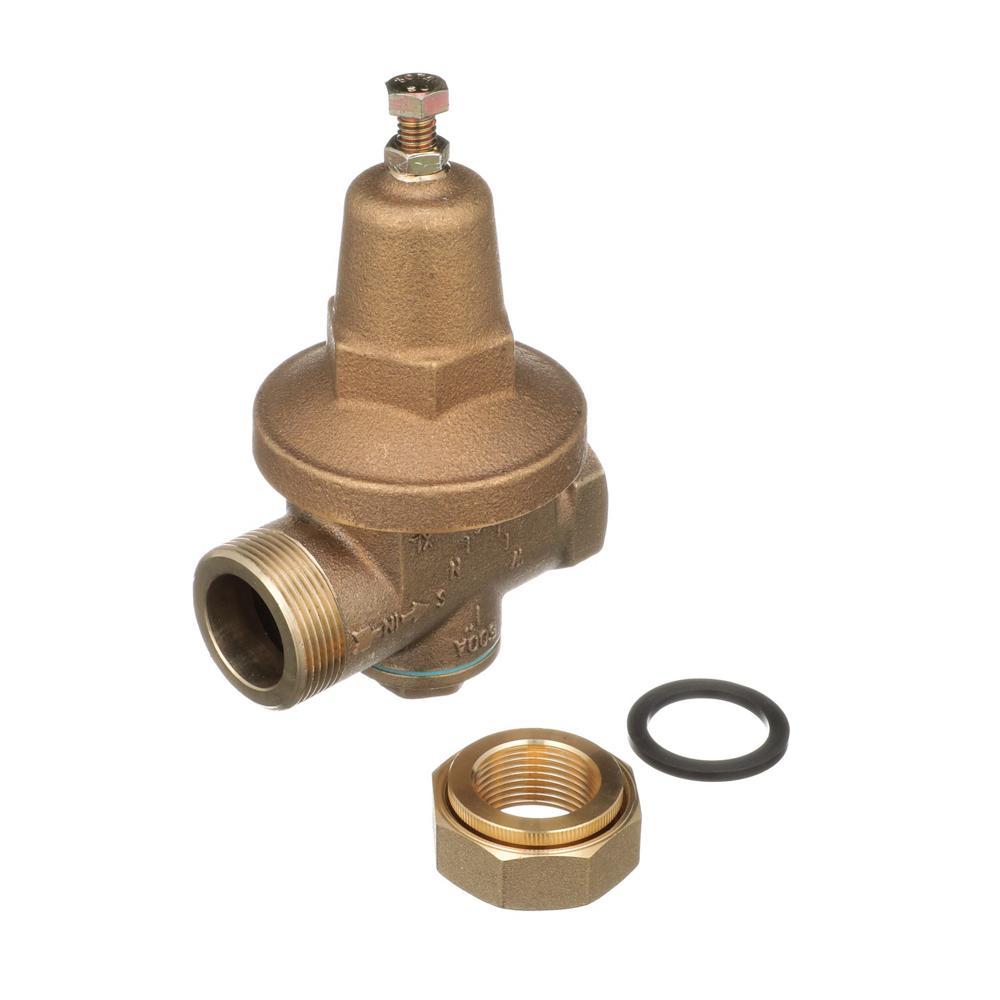

Zurn® Wilkins Pressure Reducing Valve, Lead Free, Series: 500XL, 1 in Nominal, FNPT Union x FNPT, 300 psi, 140 deg F, Media: Water, 5-1/8 in Inlet to Outlet Length, Cast Bronze Body, Cast Bronze Stem/300 Stainless Steel Seat/Oil Tempered Wire Spring Trim, Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™500) Cap Gasket, 6-7/8 in H
Body Material
Cast Bronze
Dimensions
6-7/8 in H
End Style
FNPT Union x FNPT
Inlet to Outlet Length
5-1/8 in
Media
Water
Nominal Size
1 in
Pressure Range
300 psi
Series
500XL
Softgoods Material
Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™500) Cap Gasket
Temperature Rating
140 deg F
Trim Material
Cast Bronze Stem/300 Stainless Steel Seat/Oil Tempered Wire Spring
- Highly durable, threaded bell resists corrosion and provides easy access to cartridge internals
- Lead free
- Short lay length and compact design allow it to install in tight spaces
