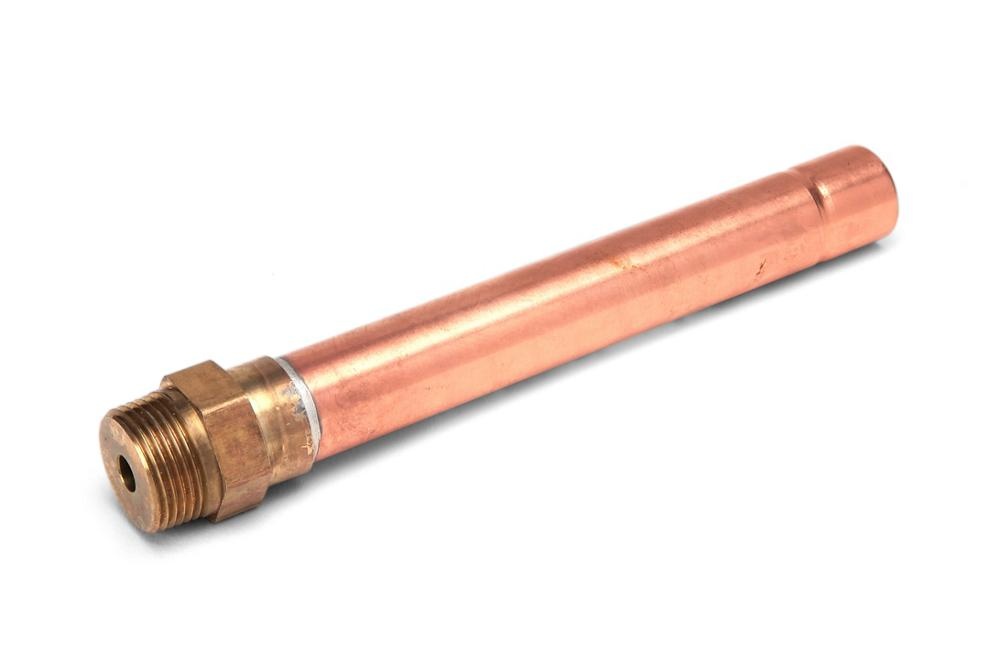

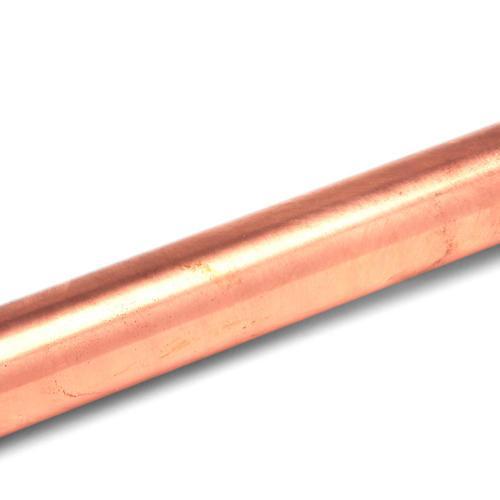

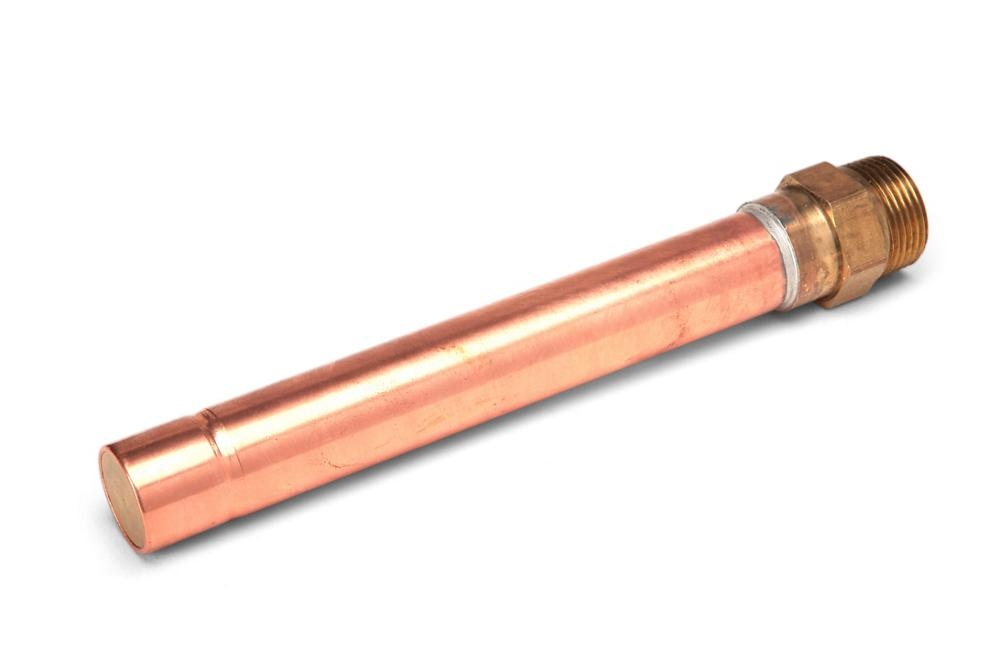

The Wilkins 9-1/4" x 1-1/8" 1260XL-C Water Hammer Arrestor with 1" MNPT thread and 33 - 60 fixture unit capacity is used in a mixture of residential, commercial, and industrial water line applications for protection against over-pressure during surges following quick valve closure. Excessive pressure surges are absorbed by the pre-charged air cushion that is permanently sealed within the water hammer arrestor. The 1260XL can be installed within a stud bay, eliminating the need for an access panel. Features include all copper and brass external construction, a temperature range of -40°F to 212°F, and a maximum transient pressure surge of 150 psi following quick valve closure.
Zurn® Wilkins Water Hammer Arrester, Lead Free, Series: 1260XL, 1 in Nominal, MNPT, 33 to 60 Fixture Unit Capacity, -40 to 212 deg F, Copper Tube Body, EPDM O-Ring, 1-1/8 in Dia x 9-1/4 in H
- Design reduces pipe banging caused by water hammer
- Eliminates need for access panel through installation within stud bay
- Air chamber is permanently sealed to eliminate excessive pressure surges
- Copper and brass external construction resist corrosion
