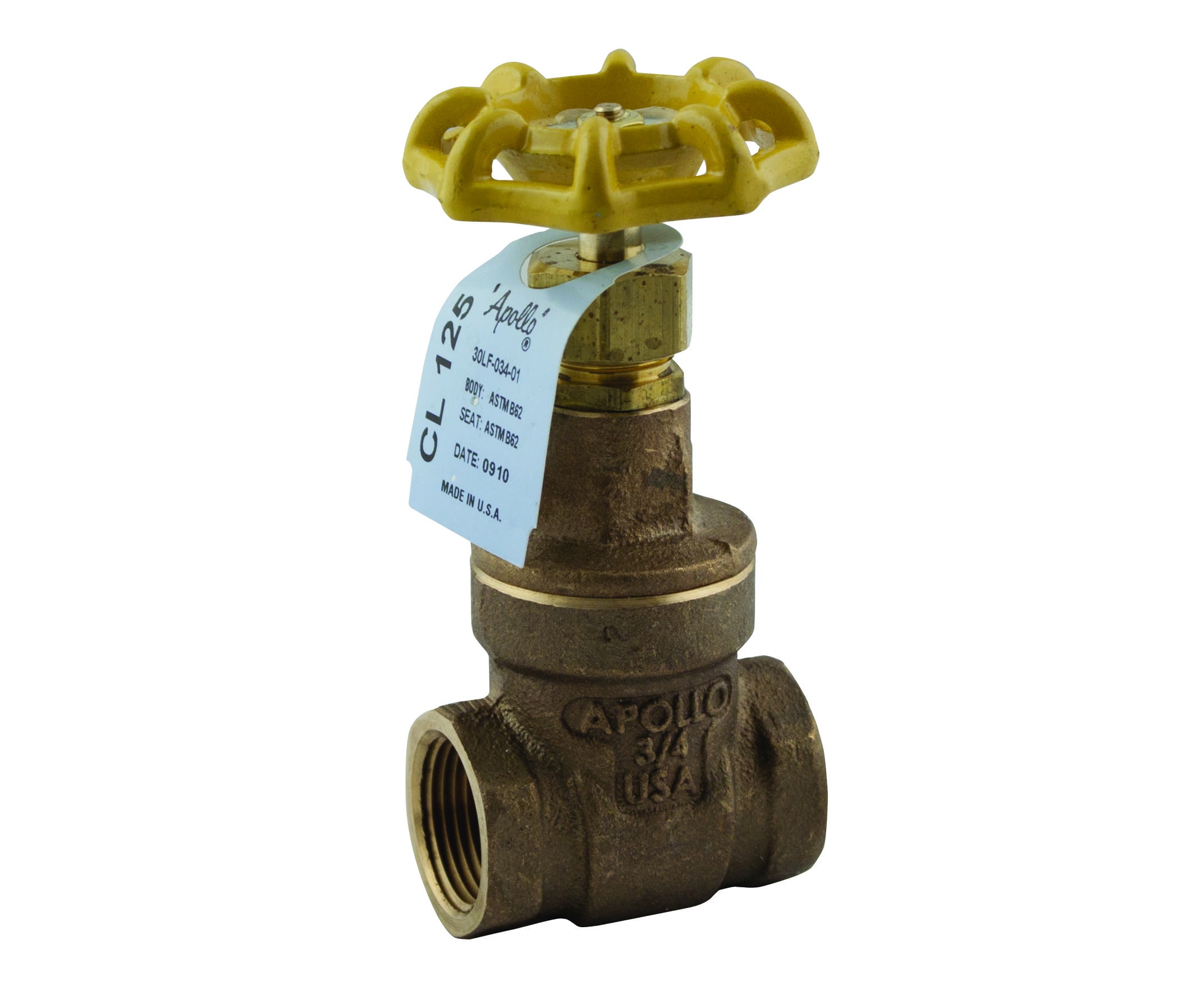

The lead free Apollo™ model 102T-LF (30LF series) gate valve provides a made in the USA alternative to globally sourced multi-turn valves for potable water service. These valves are cast, machined, assembled and tested in South Carolina using proven ASTM quality lead free materials.
Apollo™, 30LF03501, Gate Valve, Lead Free Non Rising Stem, Series: 102T-LF, 1 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, 72.3 gpm Flow Rate, Handwheel Actuator, Bronze Body, Grafoil Softgoods, 4.55 in H x 2.45 in L Dimensions
Actuator Type
Handwheel
Body Material
Bronze
Dimensions
4.55 in H x 2.45 in L
Domestic/Import
Domestic
End Style
NPT
Flow Rate
72.3 gpm
Nominal Size
1 in
Pressure Class
125 lb
Pressure Rating
200 psi CWP
Series
102T-LF
Softgoods Material
Grafoil
Temperature Rating
-20 to 406 deg F
Type
Lead Free Non Rising Stem
- Full port design
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Screw-in bonnet
- Rugged malleable iron hand wheel
- Back seat protection
- 100% factory tested
